0~3000N Automatic Compression Strength Testing Machine ( Button )
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 35 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit |
Detail Information
Place of Origin
CHINA
Brand Name
SKYLINE
Certification
Calibration certificate
SKYLINE:
Automatic Compression Strength Testing Machine
Measuring Range:
0~3000N
Accuracy:
≤±1%
Resolution:
0.01N
Plate Parallelism:
≤0.05mm
Test Speed:
12.5±1mm/min
Highlight:
abrasion testing equipment
,brake testing equipment
Product Description

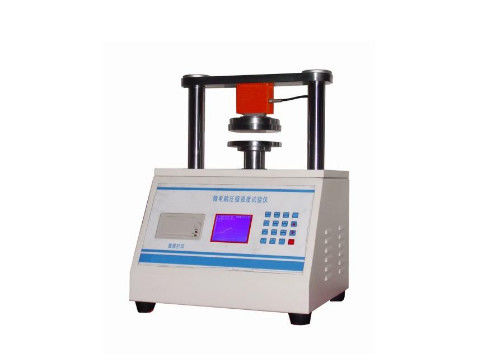

Automatic Compression Strength Testing Machine
Product usage
For paper packaging materials such as corrugated cardboard, a variety of paper quality tests, namely ring pressure (RCT), flat pressure (FCT), edge pressure (ECT), adhesion (PAT) and general compression (CMT) Testing is a test device that combines multiple functions. This machine is equipped with various fixture accessories to test the ring pressure strength of the base paper, the flat/edge pressure strength of the paperboard, and the bonding strength, so that the paper production enterprises can control the production cost and improve the product quality.
Technical parameters
| Measuring range | 0~3000N |
| Accuracy | ≤±1% |
| Resolution | 0.01N |
| Plate parallelism | ≤0.05mm |
| Test speed | 12.5±1mm/min |
| Upper platen diameter | 124mm |
| Lower platen diameter | 127mm |
| Test height interval | 55mm |
| Man-machine interface | 3.2 in 320*240 dot matrix liquid crystal display, real-time display of force value changes |
| Printout | modular integrated thermal printer |
| Working environment | temperature (20 ± 10) ° C, humidity <85% |
