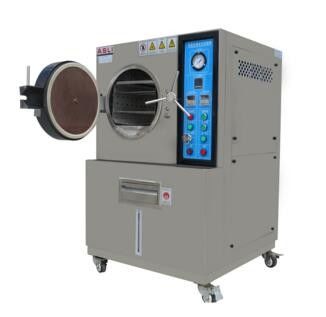

10.0Kw Environmental Test Chamber , High Temperature And Pressure Rain Test Equipment
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, T/T, MoneyGram |
| Supply Capacity: | 10 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL-IPX9K-1000L
SKYLINE:
SL-IPX9K Hight Temperature And High Pressure Rain Test Chamber
Spray Ring Radius:
235 (mm)
Water Pipe Diameter:
Φ600mm
Nozzle Diameter:
Φ0.4mm
Aperture Spacing 50mm:
Aperture Spacing 50mm
Standard:
IPX9K-1000L
Highlight:
environmental testing equipment
,environmental testing machine
Product Description
10.0Kw Environmental Test Chamber , High Temperature And Pressure Rain Test Equipment
Equipment features of environmental test chamber
Water tank inside , cycling use of water;
All stainless steel sector nozzle;
The water pump imported from Italy;
Connected WIFI operation;
Technical Parameters
| Model | SL-IPX9K-1000L |
| Dimension of Inner box | 1000×1000×1000mm |
| Outer dimension | 1200×980×1750mm |
| Number of holes | four |
| Location of spray hole | Average distribution vertical direction |
| Distance from nozzle to sample | 100-200mm/Manual adjustment |
| Water fiow | 14-16L/min |
| Water temperature | Room temperature or 80 ± 5℃ |
| Spray pressure | 8000-10000Kpa |
| Rotating speed of turntable | 4-10r/min(Precisely adjustable) |
| Power | 10.0Kw |
| Supply voltage | 380.0V |
FAQ
What is the rain test?
Rain tests are used to evaluate any physical deterioration of a material caused by rain, water spray or dripping. Exposure to water can cause damage to a product's coatings, sealants, cases and overall performance.
