10 - 60/Min Lab Testing Equipment Automatic Plug Wire Bending Test Machine
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 10 working days |
| Payment Method: | Western Union, T/T, MoneyGram |
| Supply Capacity: | 2 pcs/ month |
abrasion testing equipment
,brake testing equipment

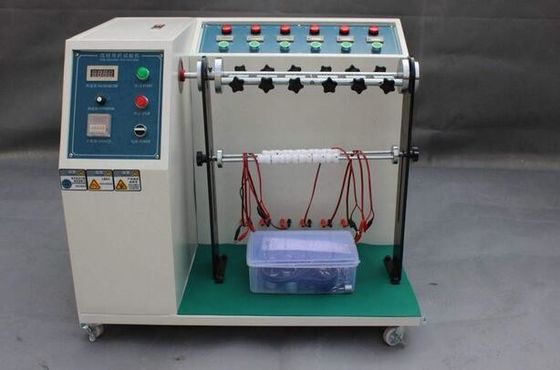

Wire Lab Testing Equipment Automatic Plug Wire Swing Durability Tester
Wire bending testing machine is suitable for the plug pinouts, power cord, USB cable, headphone cable, audio cable, headphone cable and other products wire rod bending tests or swing test. The specimen is fixed at fixture, and adding certain load, test swing around and through a few times, its outage, and view the total number of oscillations, it can automatically count, try to bend to break when not powering on, and automatically stop operation. Native UL817 related standards such as "cords-General safety requirements for components and power supply cords" provisions and general technical requirements for the headphone wire bending tests of the standard GB/T14471-93.
| Test stations | 6 groups |
| Bending angle | 0-180 ° adjustable |
| Test speed | 10-60/min |
| Control system | Digital with LCD screen |
| Counter | 0-999999 |
| Load weight | 50, 100, 200, 300, 500g |
| Machine weight | Approx 100kg |
| Power | AC220V, 50HZ |
