ASTM D1401 Oil Analyzer Equipment Petroleum Oils and Synthetic Fluids Demulsibility Characteristics Tester
| MOQ: | 1 Unit |
| Price: | negotiated |
| Standard Packaging: | plywood case |
| Delivery Period: | 20 working days |
| Payment Method: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 unit / month |
oil analysis equipment
,oil analysis machine
ASTM D1401 Oil Analyzer Equipment Demulsibility Characteristics Tester
Product information Of Demulsibility Characteristics Tester
This test method provides a guide for determining the water separation characteristics of oils subject to water contamination and turbulence. It is used for specification of new oils and monitoring of in-service oils.

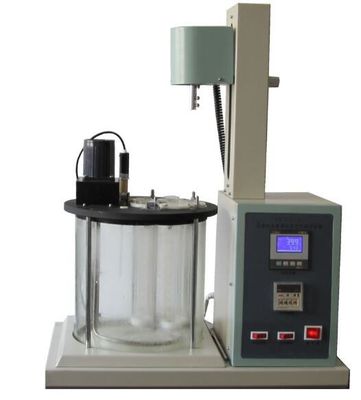

DCT-I demulsibility characteristics tester is designed and made as per Standards GB/T7305 Petroleum oils and synthetic fluids — Determination of demulsibility characteristics and ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids. It is suitable to determine the water separability of petroleum oils and synthetic fluids. It can be widely used in fields of petroleum, electricity, chemical industry , colleges and scientific research institutions.
Features
1. DCT-I demulsibility characteristics test instrument adopts small bath and desktop structure. It is easy to operate and good-looking.
2. This apparatus adopts electric motor to stir automatically. The temperature is uniform. It can do determination for 5 samples one by one.
3. The lifting of stirring device is convenient. The stirring paddle has good concentricity with cylinders. No tremble or touching the cylinder wall.
Technical specifications
| Temperature range | (Room temp.∼99.9)℃ |
| Temperature control accuracy | ±1℃ |
| Temperature resolution | 0.1℃ |
| Temperature display | LCD |
| Timing range | 1s∼9m 59s |
| Timing set | Digital control |
| Time display | Digital display |
| Stirring rate | (1500±15) r/min |
| Heating power | 1000W |
| Ambient temperature | (Room temp.∼35)℃ |
| Relative humidity | ≤85％ |
| Maximum Power consumption | 1200W |
| Dimension | 500mm×340mm×720mm |
| Power supply | AC (220±10%) V, 50Hz |
Accessories
| Item | Unit | Qty | Remarks |
| Stirring vane | Piece | 1 | |
| Sample cylinder | Piece | 6 | 1 is spare |
| Thermometer (0℃～100 ℃, scale division is 1 ℃) | Piece | 1 | |
| Temperature sensor (200 mm in length) | Piece | 1 | Has been shipped to the instrument |
| Sheath for temperature sensor | Piece | 1 | Has been shipped to the instrument |
| Stopping ring for thermometer (1 #) | Piece | 6 | |
| 10A fuse (Φ5×20) | Piece | 2 |
