ASTM D2270 Oil Analysis Equipment Electric Viscosity Meter Intelligent Kinematic Viscosity Tester Bath
| MOQ: | 1 Unit |
| Price: | negotiated |
| Standard Packaging: | plywood case |
| Payment Method: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 unit / month |
oil analysis machine
,oil testing equipment
ASTM D2270 kinematic viscosity test equipment/ Motor oil Analysis
Product introduction Of OiL Viscosity Tester
thermostatical kinematic viscosity bath is used to measure the viscous resistance of liquid and liquid absolute viscosity, widely used in the determination of oil, paint, plastic, food, medicine, adhesives and other fluids viscosity
This kinematic viscosity tester can automatically test the kinematic and dynamic viscosity of petroleum product. It can also calculate and give viscosity index. It can test various petroleum products such as lube oils, hydraulic oils, base oils, diesel fuel etc.
Characteristic

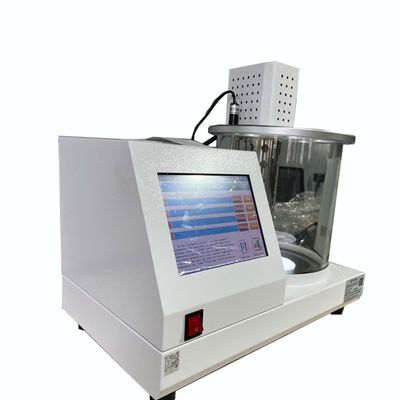

1.The instrument mainly consists of constant temperature bath, stirring device, capillary clip, electrical control unit, heating system, illumination and water-cooled tube.
2.Stainless steel constant temperature bath, square cylinder, with transparent observation winder in front, no viewing angle error, convenient for observing the viscometer.
3.SCM high precision temperature control circuit, digital display of temperature, display temperature can reach 0.01.
4.With function of capillary constants storage, can store constants of 4 pieces capillary one time. Data won't disappear when there is power outage.
5.With function of temperature revise. The modification value won't disappear when power outage occurs.
6.Sample flow timing. After stop, it automatically calculate and display the flow time and kinematic viscosity.
7.Fully automatic testing process.
Applicable standards
ASTM D445, ASTM D2270
ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity)
ASTM D2270 Standard Practice for Calculating Viscosity Index From Kinematic Viscosity at 40 and 100°C
Technical parameters
| Power supply | AC 220 ± 10 %, 50 Hz |
| Heating power | ＜1500W |
| Power for stirrer | 6W, rotating speed:1200r/min |
| Temperature range | room temperature~100 ℃ |
| Temperature control accuracy | ±0.02℃ |
| Constant temperature bath | 20L |
| Ambient temperature | -10℃~+35℃ |
| Relative humidity | <85% |
| Capillary viscometer(Pinkevitch viscometer) | 4 pieces in total. The inner diameters for each: 0.8,1.0, 1.2, 1.5 |
| Dimension | 480mm×320mm×350mm |
| Net weight | about 14Kg |
