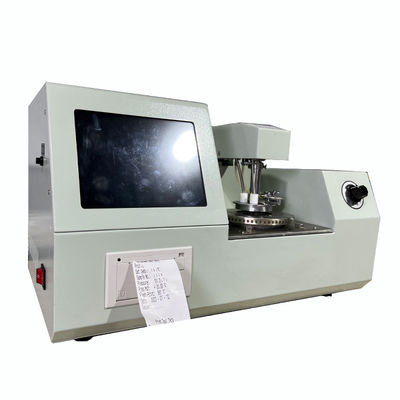

ASTM D93 Pensky-Martens Flash Point Tester
| MOQ: | 1 Unit |
| Price: | negotiated |
| Standard Packaging: | plywood case |
| Payment Method: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 unit / month |
Detail Information
Place of Origin
CHINA
Brand Name
SKYLINE
Certification
CE , Calibration Certificate
Model Number
SL-OA10
SKYLINE:
Closed Cup Flash Point Tester
Standard:
ASTM D93
Oil Cup Inner Diameter:
50.7mm~50.8mm.
Oil Cup Depth:
55.7mm~56.0mm
The Scribed Line Depth Of Capacity Of Testing Oil:
33.9mm~34.3mm.
Capacity Of Testing Oil:
About 70ml
Thermometers:
Scale 20°C~150°C, Division 1°C.
Keywords:
Oil Analysis Equipment
Name:
Closed Cup Flash Point Tester
Dimension:
410X2600X300mm
Highlight:
oil analysis lab equipment
,oil analysis equipment
Product Description
ASTM D93 Flash Point Oil Analysis Equipment Closed Cup Flash Point Tester
Description Of Closed Cup Flash Point Tester
ASTM D93 closed automatic flash point determination instrument, mainly used
for determination of petroleum products closed cup flash point value, the instrument
uses the ARM microprocessor technology, color LCD, resistive touch screen
technology, Chinese menu, human-computer interaction more convenient; instrument
with power failure memory function; instrument with automatic ignition, display, and
print results, automatic cooling function lock; instrument with igniter external
brightness adjustment function equipment with accurate measurement, good
repeatability, stable and reliable performance, simple operation of the advantages.
Widely used in electric power, petroleum, chemical industry, commodity inspection,
research and other departments, in accordance with D93 GB/T, 261-2008 ASTM
standard method requirements.
Features
1. This instrument is designed as per ASTM D93.
2. The heating power is continuously and sleeplessly adjustable. The power is shown visually by voltmeter. The temperature control mode is advanced and reasonable.
3. The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.
4. Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.
Specifications
| Display | color LCD display touch screen |
| Measuring range | room temperature 40~350° C |
| Temperature detection | platinum resistance |
| Accuracy | ≥104°C±2°C ≤104°C±1°C |
| Ignition mode | electric ignition |
| Cooling method | forced air cooling |
| Self-test function | test head, igniter, fan, etc |
| Standard | in accordance with ASTM D93 GB261-83 ISO-2719 |
| Power source | AC 220V ± 11V, 50Hz ± 2.5HZ |
| Power | ≤350VA |
| Ambient temperature | 10 ° C ~ 35 ° C |
| Weight | 15KG |
| Use ambient humidity | ≤ 85% |
|
Printer
|
thermal printer
|
|
Information storage
|
1000 analysis results can be stored |
| Repeat |
> 110 - 2 Deg. C = 110 - 1 Deg. C
|
| Temperature test |
platinum resistance
|
