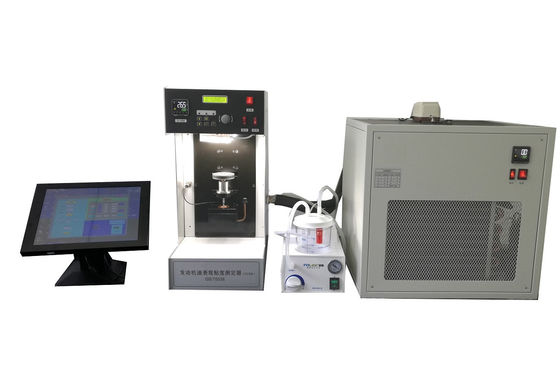

Automated Cold Cranking Simulator ASTM D5293
| MOQ: | 1 Unit |
| Price: | negotiated |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 unit / month |
Detail Information
Place of Origin
CHINA
Brand Name
SKYLINE
Certification
CE , Calibration Certificate
Model Number
SL-OA92
Temperature Range:
External Circulation Alcohol Bath Temperature Control Range Normal Temperature ~ -70 ° C
Cold Bath Temperature Control Accuracy:
±0.1 °C
Stator Temperature Control Accuracy:
±0.05 °C
Viscosity Measurement Range:
1200 ~ 27000 MPa.s
Use Environment:
10 ° C ~ 40 ° C
Environmental Humidity:
< 85%
Power:
< 2.5KW
Power Source:
AC 220V ± 20%
Detection Temperature Point:
-35, -30, -25, -20, -15, -10, -5 Degrees Celsius
Highlight:
Automated Cold Cranking Simulator
,Cold Cranking Simulator ASTM D5293
Product Description
Automated Cold-Cranking Simulator ASTM D5293
Automatic simulator Of Cold-Cranking
This instrument conforms to GB/T6538-2010, ASTM D5293 and other technical
specifications; it is suitable for testing engine
It is suitable for testing the low temperature dynamic viscosity index of engine oil. The
instrument can determine the apparent viscosity of oil at -35 ℃ to -5 ℃ with an
interval of 5℃. It has the advantages of accurate measurement, good repeatability,
stable performance and simple operation.
It is suitable for measuring the apparent viscosity of engine oil at -5~-35℃ under the
condition of shear stress about 2000~27000 mPa.s; and shear rate 105~104 S-1. The
instrument adopts fully automatic temperature control equipment and exquisite
human-computer interaction interface, so that users can easily and quickly use the
instrument for analysis. Meanwhile, the latest intelligent control system is adopted to
improve the stability and reliability of the instrument, making the temperature control
more accurate and the calculation precision higher, filling the gap of the domestic
petroleum analysis instrument
Product Description
Thermo-Oxidation Engine Oil Simulation Tester is used for thermo-oxidation engine oil simulation test.This test method covers the procedure to determine the mass of deposit formed on a specially constructed test rod exposed to repetitive passage of 8.5 g of engine oil over the rod in a thin film under oxidative and catalytic conditions at 285 °C.
Technical Features
1.Equipped with industrial touch screen, high reliability and long life.
2.Operating interface language: optional setting (Chinese);
3.imported Omron temperature controller, light touch button operation, convenient
and quick;
4.automatic detection of speed, fine-tuning knob to control the current, reducing the
error of manual operation;
5.Imported compressor compound refrigeration, large cold capacity;
6.using imported motor drive, high precision;;
7.can store and print the experimental results;
8.through the standard oil correction automatically calculate the results
9.the use of embedded operating system, stable and reliable work
10.improved rotor, low-torque test state, high repeatability
11.the end of the test shutdown, and temperature rise for rapid cleaning;
12.the instrument automatically recommended cooling temperature;;
13.rotary encoder detection of rotational speed;
14.can edit, store all standard oil parameter values;;
15.storage of 1000 sets of historical data, easy to query; fault self-test.
Technical Parameters
|
Temperature range
|
external circulation alcohol bath
temperature control range of room
temperature ~ -70 ℃
|
|
Cold bath temperature control accuracy
|
±0.1℃
|
|
Stator temperature control accuracy
|
±0.05℃
|
|
Viscosity measurement range
|
1500 to 27000 mPa.s
|
|
Operating environment
|
10℃～40℃
|
|
Ambient humidity
|
< 85%
|
| Power supply |
< 2.5KW
|
|
Power source
|
AC 220V±20%
|
Instrument advantages
1 using a split structure, the host and refrigeration are separated, which facilitates the
cooling of the refrigeration machine and reduces the impact of vibration on the test
results. Split cleaning device, also makes this wearing parts placed on the outside of
the host, failure, easy to quickly replace.
2 The machine adopts the way of 7 curves calibrated separately (B-value curve), each
temperature section has its own B-value parameters, which improves the accuracy of
use.
3WINDOWS system is used for software development, and the versatility of the
instrument makes the later use cost relatively low.
Configuration List
