Bicycle Pedal Flower Hub Abrasion Testing Machine Test Frequency Adjustable
| MOQ: | 1 unit |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
SKYLINE:
Bicycle Pedal Flower Hub Abrasion Testing Machine
Test Frequency:
0~120 Times/min Adjustable
Counter:
0~999999 Setting To Stop Automatically
Number Of Tests:
4
Timer:
199hr
Rotation Accuracy:
±1 Rpm
Power Source:
Inverter Motor
Power Supply:
1∮, AC220V, 15A
Highlight:
abrasion testing equipment
,brake testing equipment
Product Description

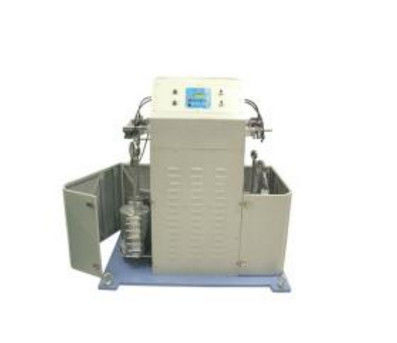

Bicycle Pedal Flower Hub Abrasion Testing Machine
Product introduction
This machine is designed and manufactured according to the standard BS ISO8098, EN14781, ISO4210, BS EN14765. The pedal or hub is mounted on the rotating shaft of the instrument. The load is applied according to the specifications and the set speed is selected. The continuous test is executed to reach the required setting. Count, determine whether the sample has damage or defects, to ensure the quality of the product.
Technical parameter
| Test frequency |
0~120 times/min adjustable |
| Counter | 0~999999 setting to stop automatically |
| Counter (different) | four groups of individual counts to stop the stop count |
| Number of tests | 4 |
| Timer | 199hr |
| Weight | 30kg, 50kg, 65kg (combined) |
| Rotation accuracy | ±1 rpm |
| Power source | inverter motor |
| Dimensions (WxDxH) | Host 2600×2400×900 |
| Weight (approx) | 300kg |
| Power supply | 1∮, AC220V, 15A (or specified by country) |
