Bicycle Universal Material Testing Machine For All Parts And Materials Of Bicycles
| MOQ: | 1 unit |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
SKYLINE:
Bicycle-Universal-Material-Testing-Machine
Measuring Range:
5000kgf
Measurement Accuracy:
1/2000000
Maximum Load:
5000 (KN)
Type:
Electrohydraulic Pressure Testing Machine
Weight:
350 (kg)
Highlight:
physical testing equipment
,brake testing equipment
Product Description

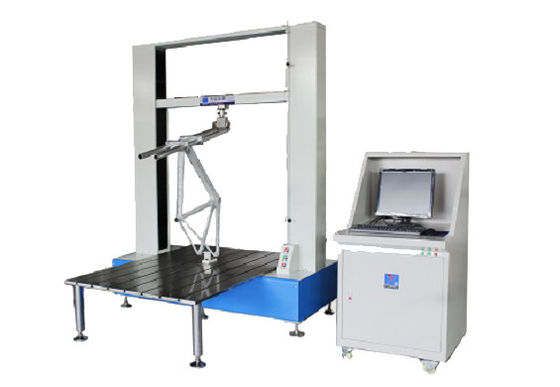

Bicycle Universal Material Testing Machine
Product information
Bicycle universal material testing machine rim parts tensile and compressive torque strength testing machine manufacturing through ISO-9001 international quality certification in line with the requirements: ISO 7500 / 1, EN 1002-2, BS 1610, DIN 5122, ASTME4, JIS B7721 / B 7733, CNS 9471 / 9470, JJG 475-88 and other national testing equipment testing standards.
Application
It is suitable for all parts and materials of bicycles. It is used for strength testing and testing of tensile, compressive and torsion, and has complete functions and wide applications.
Technical parameter
| Load capacity | 5,000kgf |
| Unit switching | Strength: N/kN/g/kg/ton/lb, displacement: mm/cm/inch |
| Load resolution | 1/20,0000 |
| Load accuracy | ±0.5% |
| Power magnification | ×10%, ×20%, ×50%, ×100% automatic magnification segmentation |
| Test width | 1200mm |
| Board travel | 1400mm |
| Test stroke | the length of the joint stroke minus the upper and lower clamps and the length of the test piece |
| Test speed range | 0.01 ~ 500mm / min |
| Displacement resolution | 0.01mm |
| Power control | servo motor, servo drive |
| Dimensions (WxDxH) | 2250 × 1800 × 2300mm |
| Weight (approx.) | 1400kg |
| Power supply | 1∮, AC220V, 15A (or specified by country) |
