Density Tester ASTM D1298 Petroleum Product Testing Equipment
| MOQ: | 1 Unit |
| Price: | negotiated |
| Standard Packaging: | plywood case |
| Payment Method: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 unit / month |
Density Tester ASTM D1298
,Petroleum Product Density Tester
,Densitometer Oil Analysis Equipment
Density Tester ASTM D1298 Petroleum Product Testing Equipment Densitometer Density Meter Densimeter Petroleum Hydrometer

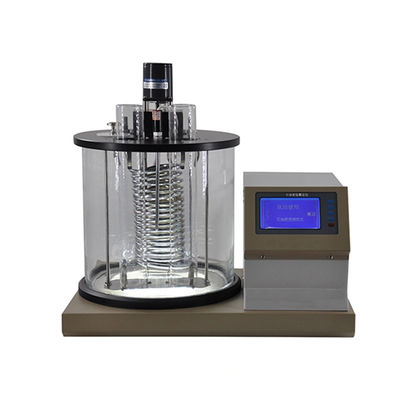

SL-OA57 Density Tester
Product description:
The densitometer is used to measure the density of transparent, low viscosity liquid and viscous liquid. Density refers to the mass number of substances contained in a unit volume at a specified temperature. The density of petroleum products increases with the increase of carbon, oxygen and sulfur content in their composition, so the density of petroleum products with more aromatic hydrocarbons, resins and asphaltenes is large, while the density of petroleum products with more cycloalkanes is in the middle, and the density of petroleum products with more alkanes is the smallest. Therefore, according to the density (or specific gravity) of petroleum products, the type and composition of oil products can be determined to some extent. It is widely used in petroleum, chemical industry, metallurgy, electric power, transportation, commodity inspection, scientific research and other departments.
Technical features:
It is controlled by a high-precision microcomputer, with fast speed and high precision.
It adopts PID self-tuning temperature control technology with high temperature control accuracy.
320 × 240 dot matrix LCD, touch sensitive buttons.
It is used to measure the density of transparent, low viscosity liquid and viscous liquid, with high temperature control accuracy, stability and reliability, and simple operation.
Technical parameters:
| Temperature control range | 20~100 ℃ can be set at will (optional cooler). The temperature control range can reach below 20 ℃ by configuring cold source |
| Temperature control accuracy | ± 0.1 ℃ |
| Heating power | 1000W |
| Working power supply | AC220V ± 10%, 50Hz |
| Test hole | 2 holes |
| Detection range | 0.6-1.20g/cm3 |
| Maximum sampling volume | 500ml |
| Instrument type | densitometer |
| Host weight | 18.4kg |
| Boundary dimension | 545mm * 370mm * 500mm (main machine),400mm * 400mm * 300mm (cooler) |
| Weight | 18.4kg (main engine) |
