EN1400-2 EN14350-1 Toys Testing Equipment Indentor For Pacifier Testing
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | carton box |
| Delivery Period: | 3 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit |
Detail Information
Place of Origin
CHINA
Brand Name
SKYLINE
Certification
Calibration certificate
Model Number
SL-EN1400I
SKYLINE:
Indentor
Standards:
EN1400-2, EN14350-1, EN14372, EN1400-1
Material:
Alu.alloy
Weight:
1kg
Highlight:
swing durability tester
,swings testing equipment
Product Description

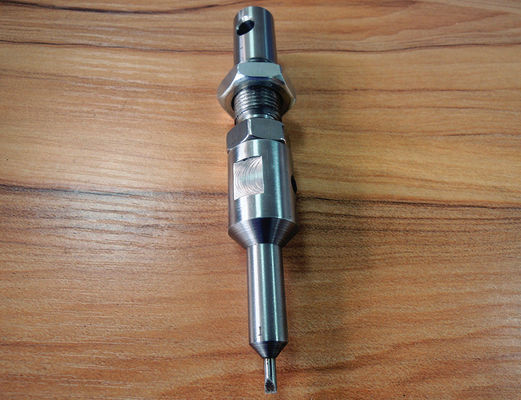

EN1400-2 EN14350-1 EN14372 EN1400-1 Indentor For Pacifier Testing
Usage
A range of fixtures for pacifier testing, including acupuncture, bending, tensile testing, etc.
Standards compliant
EN1400-2, EN14350-1, EN14372, EN1400-1
Technical parameters
The needle part is 0.20±0.01MM on the front and DIN3±0.05MM on the side.
1. Need to be installed on the tensile machine
2. The lower nipple fixing fixture can be moved left and right to facilitate testing different parts of the nipple
3. The lower nipple support plate requires a hardness of 97 IRHDs
The tip is centered vertically at 15mm to 20mm at the end of the teat, and a pressure of 200±10N is applied at a speed of 10±5mm/min for 1±0.5sec. Check whether the nipple is punctured.
