EN14764 2005 Frame Pedal Fatigue Testing Machine For Bicycle Frame Fatigue
| MOQ: | 1 unit |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
SKYLINE:
Frame-Pedal-Fatigue-Testing-Machine
Capacity (kgf):
500
Test Force Value Accuracy:
±3%
Maximum Working Amplitude ( Mm ):
±100
Motion Detector:
LVDT Accuracy ±0 . 01 Mm
Power Source:
Servo Electric Cylinder Controllable
Frequency Range:
1HZ~15HZ Adjustable
Power Supply:
AC220V, 15A
Highlight:
abrasion testing equipment
,physical testing equipment
Product Description

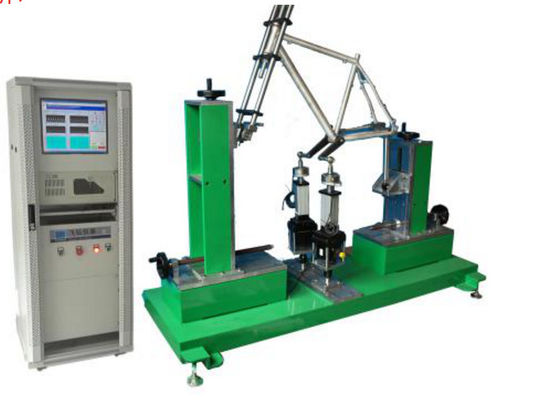

Frame Pedal Fatigue Testing Machine
Product usage
The frame fatigue dynamic fatigue life tester is designed for the bicycle frame fatigue resistance test standard, and the double electric cylinder is used for applying force. The bicycle frame is mounted on the test fixture and fixed, and a certain frequency, load and test times are applied thereto. The fatigue applied force is judged by checking the damage degree of the sample after the test.
Standard test
DIN79100, EN14764:2005, ISO4210:2014, JIS D9416-2004 BA, CNS B7063 CNS B7011, JIS D9301-2004
Technical parameters
| Capacity (kgf) | 500 |
| Test force value accuracy | ±3% |
| Maximum working amplitude ( mm ) | ±100 |
| Motion detector | LVDT accuracy ±0 . 01 mm |
| Power source | Servo electric cylinder controllable |
| Frequency Range | 1HZ~15HZ adjustable |
| Dimensions | 195*45*90 (cm) |
| Weight (about) | 160 (Kg) |
| Power supply | AC220V, 15A |
