Fully Automatic Thickness Gauge Paper Thickness Gauge Computer Paper Thickness Tester
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 35 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit |
Detail Information
Place of Origin
CHINA
Brand Name
SKYLINE
Certification
Calibration certificate
SKYLINE:
Fully Automatic Thickness Gauge
Display Value Error:
±0.3%
Indication Value Variability:
≤0.3%
Measuring Range:
≤5mm
Resolution:
0.001mm
Measurement Parallelism:
≤0.002mm
Highlight:
abrasion testing equipment
,physical testing equipment
Product Description

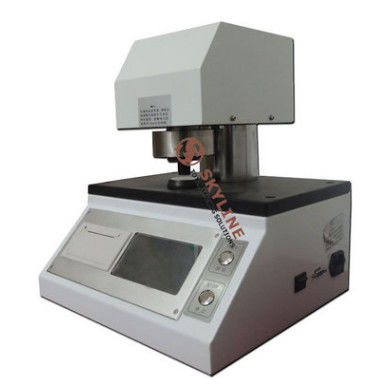

Fully Automatic Thickness Gauge Paper Thickness Gauge Computer Paper Thickness Tester
Product usage overview
The instrument is an electromechanical integration product, computer measuring and controlling paper thickness meter
Using high-precision displacement sensor, the instrument has the functions of test, conversion, display, memory, printing and data processing.
Ideal test equipment for industries and departments such as paper, packaging, film research and product quality supervision and inspection.
Technical parameter
| Power source | AC220V±10% 2A 50Hz |
| Display value error | ±0.3% |
| Indication value variability | ≤0.3% |
| Measuring range | ≤5mm |
| Resolution | 0.001mm |
| Measurement parallelism | ≤0.002mm |
| Contact area | paper (200±5)mm2; film (50±1)mm2 |
| Contact pressure | (100±10) kPa; (can be changed); film (17.5±1) kPa (other pressures can be customized) |
| Falling speed | ≤0.5-6mm/s; (can be changed) |
| Beating printer | modular integrated thermal printer |
| Weight | about 25kg |
