ISO4210-2014 0—2000N Bicycle Wheel Brake Fatigue Testing Machine
| MOQ: | 1 unit |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
SKYLINE:
Bicycle Wheel Brake Fatigue Testing Machine
Load:
0—2000N (direct Pressure Type)
Obstacle Angle:
45 Degree
Obstacle Height:
2mm/2, 3mm/2 Or 5mm/2
Speed:
0.05~5000m/h
Pallet Lifting Range:
50~200mm
Speed Unit:
KM/H, M/S
Control Box Size:
950*450*330mm
Highlight:
abrasion testing equipment
,physical testing equipment
Product Description

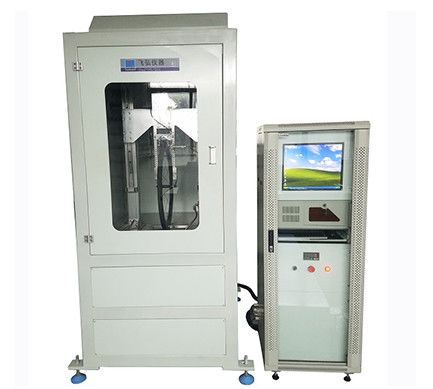

Bicycle Wheel Brake Fatigue Testing Machine
Product manual
The test machine drives the measured rim with a large revolver as the driving wheel, and can perform the "brake dry and wet state test", "dynamic walking test", "brake performance test", "wheel static pressure test" and "deflection test". With industrial computer control, you can print test results with a micro printer. The application of the load is carried out by using a weight-added direct-pressure type to more realistically simulate its test environment and state;
Test standard
EN14764:2005, ISO4210-2014
Technical parameters
| Load | 0—2000N (direct pressure type) |
| Obstacle height | 2mm/2, 3mm/2 or 5mm/2 |
| Obstacle angle | 45 degree |
| Direction of operation | Support positive and negative |
| Speed | 0.05~5000m/h |
| Pallet lifting range | 50~200mm |
| Speed unit | KM/H, M/S |
| Control box size | 950*450*330mm |
| Main box size (WxDxH) | 2.9*1.2*2.5m |
| Weight | About 320kg |
