ISO 8124-1 Handheld Dial Torque Gauge For Toys Testing
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Carton box |
| Delivery Period: | 5 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit |
Handheld Dial Torque Gauge
,ISO 8124-1 Dial Torque Gauge
,150n torque dial gauge

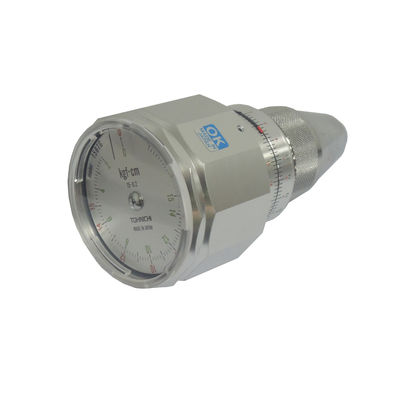

ISO 8124-1 Toys Testing Equipment Hand Held Dial Torque Gauge
Product introduction
To determine whether components of toys can be removed by a certain torque force.
A torque-measuring device is used in conjunction with a torque clamp to record the applied force.
Any projection, part or assembly of a toy that a child can grasp with at least the thumb & forefinger
or the teeth shall be subject to the torque test.
Testing standards
ASTM F963 CFR 16 CFR CPSC USA EN71, ISO8124
Product Features
Torque meter is a test tool for measuring tiny torque and fasteners.
It can be measured in both clockwise and counterclockwise directions, and is suitable for checking and studying the torque required for assembly of small parts.
An overload protection device is installed inside, and both the dial and the body have scale indications.
Exquisite design, light weight, easy to use; scale display on the surface, does not damage the structure of the article.
Parameter
| Model | Capacity | Graduation |
| 6BTG | 0.5-0.6kgf.cm | 0.1kgf.cm |
| 9BTG | 1-9kgf.cm | 0.2kgf.cm |
| 15BTG | 1-15kgf.cm | 0.2kgf.cm |
Torque Clamp please refer to below
