ISO 8124-1 Toys Testing Equipment Kinetic Energy Tester
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 5 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 5 pcs / month |
stability test chamber
,swing durability tester

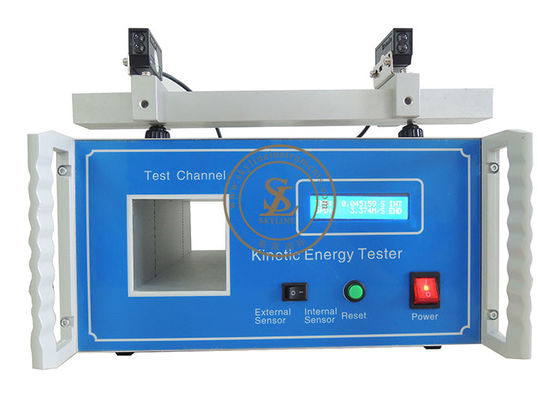

ISO 8124-1 Toys Test Equipment Toy Kinetic Energy Tester
Product introduction
The Kinetic Energy Tester is used to test related materials from the launch of the toys and toys from the launch of a non-exclusive material that may be caused by the ejection of some, but not all of the potential risk of accidents.
To determine the size catapults kinetic energy of toys, the ejection of parts of the test apparatus through the tube or external testing of the components of the two sensors detect the ejection toy parts used away after a certain period of time, it has calculated the move Energy. The main instruments used for this test launch of baby toys or children's safety.
Main Parameters
| Sample test range | 0.001g~1000,000.000g |
| Response time | 10uS. |
| Speedometer time | 1uS-15.000000S |
| Projectile size |
maximum 50mm diameter Minimum 2mm diameter |
| Internal testing channel size | 76mmx76mm |
| Sensors distance | 152.4mm( internal sensor ) |
| Adjustable | 40mm - 400mm ( external sensor) |
| Direct-reading | Induction time, Test speed, Test power |
| Dimensions | 350 x 420 x 210mm (L x W x H) |
| Weight | 19kg |
| Standards |
ISO 8124-1 EN-71-1 16 CFR 1500 ASTM F963 4.8 |
