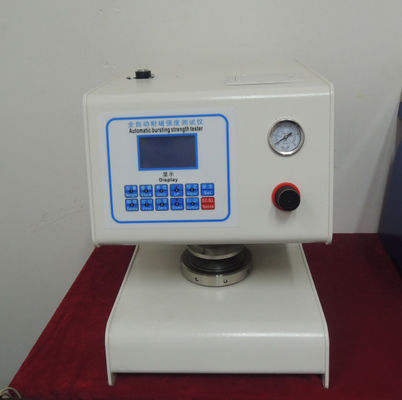

Keyboard Cardboard Paperboard Burst Strength Tester with Integrated Thermal Printer
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 10 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
Calibration Certificate
Measurement Range:
50~1400kpa
Accuracy:
≤±0.5%
Resolution:
0.01kpa
Deformation Error:
≤1mm
Oil Delivery Speed:
95±5ml/min
Unit Conversion:
Kg/cm2, Kpa, Lbf/in2
Highlight:
physical testing equipment
,brake testing equipment
Product Description
Keyboard Cardboard Burst Tester Burst Tester Paperboard Burst Burst Strength Tester
Product Introduction
Applicable to packaging materials, mainly used for the determination of various paperboard and single-layer and multi-layer corrugated board, but also for the test of the burst strength of non-paper materials such as silk and cotton. As long as the material is placed, it is automatically detected, automatic test, automatic oil pressure return and automatic calculation, storage test data, printing, digital display of the instrument and automatic printing of test results and data processing.
Implementation standards
ISO2759-2001, JIS-L1004, L1018, L1031, K6328, P8131, P8112 and ASTM-D2210, TAPPI T403
Technical parameters
| Measurement range | 50~1400kpa |
| Accuracy | ≤±0.5% |
| Resolution | 0.01kpa |
| Deformation error | ≤1mm |
| The concentricity of the upper and lower discs | ≤0.25mm |
| Silicone film disk pressure | 9mm (30 ± 5) kPa |
| Oil delivery speed | 95±5ml/min |
| Platen diameter | diameter of the upper plate (30.5±0.1mm) diameter of the lower plate (33.1±0.1mm) |
| Man-machine interface | 3.4 in 320*240 dot matrix liquid crystal display, real-time display data changes |
| Clamping force | 400kpa~1200kpa (adjustable) |
| Unit conversion | Kg/cm2, kpa, lbf/in2 |
| Printout | modular integrated thermal printer |
| Dimensions | 400-350*500mm |
| Weight | 42kg |
| Working environment | temperature (20 ± 10) ° C, humidity <85% |
