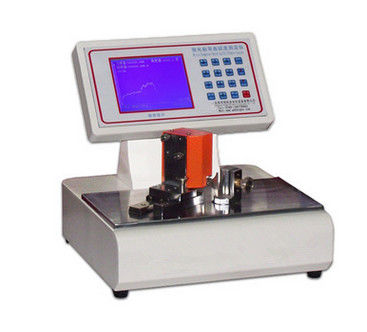

Lab Testing Equipment Bending / Crease Stiffness Cardboard Stiffness Tester
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 35 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit |
abrasion testing equipment
,physical testing equipment
Bending Stiffness Tester / Crease Stiffness Cardboard Stiffness Tester
Product use overview
Bending stiffness tester / crease stiffness tester The computer stiffness tester is a multi-functional intelligent computer stiffness tester for measuring small thickness
Bending stiffness of 2mm paper, cardboard and other strength sheet-like non-metallic materials.
Features
The instrument test angle can be arbitrarily set between (1 and 20) °, and the test time can be arbitrarily set within the specified range (3s to 30s). Self-sufficient
The zero-test function is used to display the stiffness and time curve in real time. The touch screen is simple and convenient to operate. This instrument has various parameters included in the standard.
Test, display, memory, statistics and printing functions to provide scientific data analysis for cardboard bending stiffness detection
Technical parameters
| Measuring range | (15~10000) mN.m |
| Measuring thickness | (0-2) mm |
| Resolution | 0.1mN |
| Indication variability | ≤1% |
| Bending length | (50/25/20/15/10/5) ±0.1mm |
| Bending angle | (±7.5o or ±15o) ±0.3 o (1~90 o adjustable) |
| Load arm length | 200 ° ± 20 ° / min |
| Printout | modular one-piece thermal printer |
| Data display | 5.7in LCD display with graph display |
| Printout | Thermal Printer |
| Working environment | temperature (20 ± 10) ° C, humidity <85% |
| Dimensions | 340*330m*340mm |
| Weight | 15kg |
