Lab Testing Equipment Intelligent Computer Top Pressure Tester / Bottle Top Pressure Tester
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 5 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 5 pcs / month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
SKYLINE:
Intelligent Computer Top Pressure Tester
Sample Height:
≤ 600mm
Displacement Resolution:
0.01mm
Stroke:
600mm Or 1000mm (optional)
Power Supply:
220V, 50Hz
Sample Diameter:
≤150 Mm
Highlight:
abrasion testing equipment
,brake testing equipment
Product Description

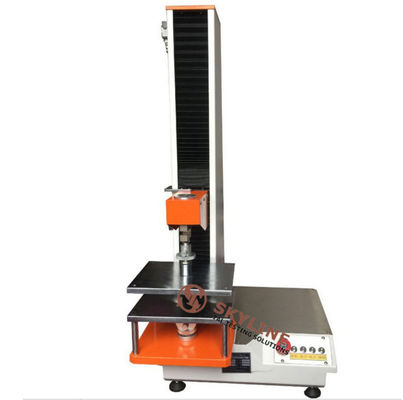

Intelligent Computer Top Pressure Tester/Top Pressure Strength Meter
Product description
The intelligent computer top pressure tester is a bottle top pressure testing machine, which can be used for vertical load bearing strength of water bottles, plastic bottles, cans, composite cans, PET bottles, beverage bottles, purified water bottles, mineral water bottles, oil bottles, cola bottles, etc. Compressive strength, constant pressure testing instrument for pressure resistance of the bottle body. It is also suitable for the tensile test of rubber, light industrial textiles, composite materials, wire and cable, mechanical parts and other industries.
Product specifications
| Sample height | ≤ 600mm |
| The maximum test force | 500N 1000N 2000N 5000N (optional) |
| The range | 2% -100% of the maximum force; |
| Test force accuracy | better than ± 1% |
| Displacement resolution | 0.01mm; |
| Displacement measurement accuracy | better than ± 1%; |
| Stroke | 600mm or 1000mm (optional) |
| Displacement speed control range | 1mm/min~500mm/min |
| Displacement speed control accuracy | better than ±1% |
| Testing machine level | level 1 |
| Deformation indication error | ≤ ± (50 + 0.15L) |
| Testing machine size | 530 * 266 * 1450 |
| Power supply | 220V, 50Hz |
| Weight | 100KG |
| Sample diameter | ≤150 mm |
