Lab Testing Equipment Luggage Drop Test Machine with Double Column Direction
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 35 working days |
| Payment Method: | Western Union, T/T, MoneyGram |
| Supply Capacity: | 2 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
Calibration Certificate
Model Number
SL-TL07
SKYLINE:
Luggage Drop Test Machine
Drop Height:
450~1500mm
Maximum Weight Of Test Piece:
60kg120×120×210cm LxWxH
Power Supply:
1∮, AC220V, 50Hz, 1/2P
Weight (approx.):
420kg
Dimensions (L × W × H):
1400 × 1200 × 2140mm
Highlight:
abrasion testing equipment
,physical testing equipment
Product Description

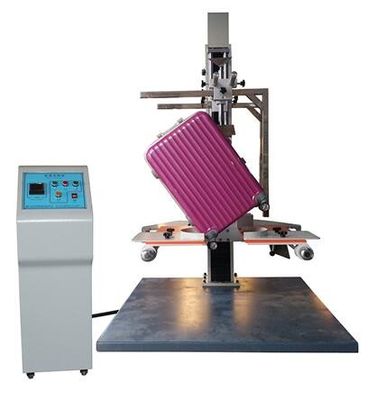

Luggage Drop Test Machine
Use
This series of drop test machine adopts double column direction, spring buffer and height scale indication, and the work is stable and reliable. It is equipped with a professional drop clamp for luggage, which can achieve edge, face and corner drop. During the process of moving or transporting, the product may be damaged and the internal product may be damaged. If the damage is prevented in advance, the machine can be used to test the expected result, so as to obtain the best solution, so as to minimize the transportation process. loss.
According to the standard
QBT 2921-2007 luggage drop test method, QBT 2155-2010 travel luggage.
Product specifications
| Drop height | 450~1500mm |
| Display mode | height ruler |
| Maximum weight of test piece | 60kg |
| Maximum size of test piece | (L × W × H) 800 × 1000 × 800mm |
| Drop panel area | (W × L) 1200 × 1400mm |
| Single wing area | (W × L) 350 × 760mm |
| Power supply | 1∮, AC220V, 50Hz, 1/2P |
| Weight (approx.) | about 420kg |
| Dimensions (L × W × H) | 1400 × 1200 × 2140mm |
