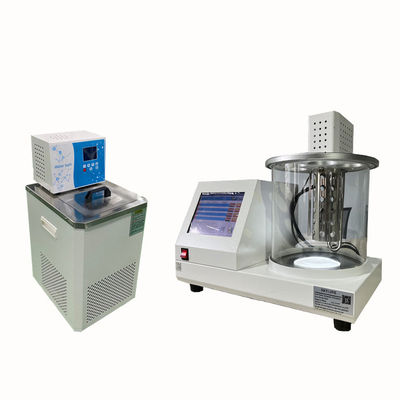

Low Temperature Kinematic Viscosity Tester ASTM D445 / ASTM D2532
| MOQ: | 1 Unit |
| Price: | negotiated |
| Standard Packaging: | plywood case |
| Payment Method: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 unit / month |
Detail Information
Place of Origin
CHINA
Brand Name
SKYLINE
Certification
CE , Calibration Certificate
Model Number
SL-OA21A
Standard:
ASTM D445,ASTM D2532
Heating Power:
Less Than 1500W
The Number Of Holes Of Liquid Bath:
4 Holes
Temperature Control Range:
Room Temperature -100 ° C
Ambient Temperature:
0℃~+40℃
Name:
Automatically Kinematic Viscosity
Keywords:
Oil Analysis Equipment
Temperature Control Accuracy:
± 0.02 ° C
Input Power Supply:
AC220V±10V 50Hz
Highlight:
low temperature kinematic viscosity tester
,ASTM D445 kinematic viscosity tester
,ASTM D2532 kinematic viscosity tester
Product Description
Oil Analysis Testing Equipment Low Temperature Kinematic Viscosity Meter for Petroleum roduct
Description Of Automatically Kinematic Viscosity
The oil product kinematic viscosity automatic measuring instrument is a special test instrument designed and manufactured according to the national standard "GB265-88 petroleum product kinematic viscosity measurement method", which is suitable for determining the kinematic viscosity of liquid petroleum products. The instrument has the timing of the sample movement time and automatically calculates the final result of the kinematic viscosity. The method is suitable for determining the kinematic viscosity of a liquid petroleum product (referred to as Newtonian liquid) in units of m2/s, which is usually used in practice as mm2/s. The kinetic viscosity is obtained by multiplying the measured kinematic viscosity by the density of the liquid. The method is to measure the time when a certain volume of liquid flows under gravity through a calibrated glass capillary viscometer at a constant temperature, and the product of the capillary constant of the viscometer and the flow time, that is, the liquid is measured at the temperature. Kinematic viscosity. The product of the kinematic viscosity at this temperature and the density of the liquid at the same temperature is the kinematic viscosity at that temperature.
Feature
1.It uses intelligent temperature controller,rapid temperature control,the accuracy of control temperature is +/-0.1℃
2.It adopts hard glass steel and thermal insulation jacket cylinder, good thermal insulation performance,and easy to observe the sample
3.It adopt desktop and integrated machine design,easy to operat
4.It adopts electric stirring device,bath temperature uniformity.
Technical parameters
| Power supply | AC 220 ± 10 %, 50 Hz |
| Heating power | ＜1500W |
| Power for stirrer | 6W, rotating speed:1200r/min |
| Temperature range | room temperature~100 ℃ |
| Temperature control accuracy | ±0.02℃ |
| Constant temperature bath | 20L |
| Ambient temperature | -10℃~+35℃ |
| Relative humidity | <85% |
| Capillary viscometer(Pinkevitch viscometer) | 4 pieces in total. The inner diameters for each: 0.8,1.0, 1.2, 1.5 |
| Dimension | 480mm×320mm×350mm |
| Net weight | about 14Kg |
Instrument structure
Mainly consists of heating tube, capillary tube, test stand, stirring motor, chassis thermostatic bathtub, lighting, electrical control part, LCD screen, keyboard, printer and so on.
