lubricating Oil Analysis equipment|automatic Lubricating Oils Oxidation Stability Tester
| MOQ: | 1 Unit |
| Price: | negotiated |
| Standard Packaging: | plywood case |
| Payment Method: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 unit / month |
Detail Information
Place of Origin
CHINA
Brand Name
SKYLINE
Certification
CE , Calibration Certificate
Model Number
SL-OA32
Item:
Automatic-Lubricating-Oils-Oxidation-Stability-Tester
Heating Tube Power:
2500W
Range For Pressure Sensor:
(0~1.6)MPa
Accuracy:
±2‰
Temperature Control Accuracy:
±0.1℃
Rotation Speed:
(100±5)r/min
Dimension:
550mm×800mm×1000mm
Weight:
45Kg
Keywords:
Lubricating Oil Analysis Equipment
Brand:
SKYLINE
Highlight:
oil analysis equipment
,oil testing equipment
Product Description

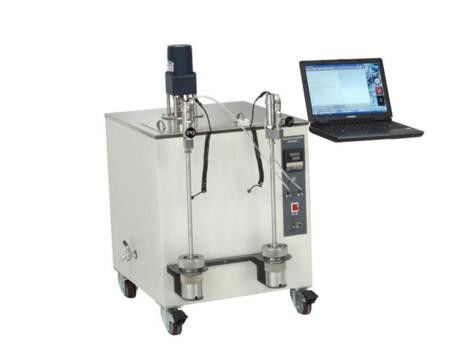

Oil Analysis Equipment Automatic Lubricating Oils Oxidation Stability Tester
Product information
The instrument is designed and made as per industrial standard of People’s Republic of China SH/T 0193 Lubricating oils-Determination of oxidation stability-Rotating pressure vessel method and ASTM D2272 Standard test Method for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel.
The instrument is used to determine the oxidation stability of steam turbine with the same composition (oil base oil and additive) Also can be used to determine new mineral insulating oil containing 2,6-BHT.
Features
1.A new paperless recorder is used to analyze and manage a large amount of data recorded in the production process.
3.The pressure transmitter imported from the United States is used, which has high pressure accuracy.
4.The gear transmission device has the advantages of no noise, stable performance and no loss.
5.High temperature resistant bearing and high temperature sealing device are adopted to ensure stable rotation speed and more stable temperature of oil bath. The gear structure is set outside the bath, which can effectively avoid the hot corrosion of the gear caused by high temperature oil bath and prolong the service life of the gear.
6.The two oxygen bombs are separately controlled by two motors, making the speed more stable, more reliable and easier to maintain.
Technical parameters
|
Power supply voltage AC
|
220V ± 10%, 50Hz ± 10%
|
|
Temperature control range
|
room temperature~150 ± 0.1 ℃
|
|
Heating power
|
constant temperature 1KW, fast heating 2KW
|
|
Motor power
|
40W, 100 ± 5r/min
|
|
Recorder
|
New paperless pressure recorder, high pressure 1.6Mpa (screen display is 01.60Mpa)
|
|
Rotating oxygen bomb
|
2
|
|
Overall dimension
|
900mm × 450mm × 500mm
|
|
Weight
|
45kg
|
|
Ambient temperature
|
5 ℃～ 40 ℃
|
|
Relative humidity
|
≤ 85%
|
