Paper Board Thickness Meter Desktop Paper Board Thickness Tester
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 35 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit |
Detail Information
Place of Origin
CHINA
Brand Name
SKYLINE
Certification
Calibration certificate
SKYLINE:
Cardboard Sampler
Measuring Range:
0-5mm
Test Accuracy:
0.01mm
Display Mode:
Digital Display
Indication Error:
0.05%
Contact Area:
200±5 Mm2
Highlight:
abrasion testing equipment
,physical testing equipment
Product Description

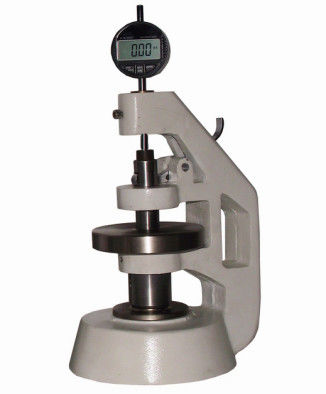

Paper Board Thickness Meter Desktop Paper Board Thickness Tester
Product usage overview
Thickness gauge is a special test instrument for thickness measurement. Its main technical parameters and performance indicators are in compliance with the relevant standards.
Widely used in paper, paperboard, film, non-woven fabrics, and other sheet materials, corrugated board thickness measurement.
Technical Parameters
| Measuring range | 0-5mm |
| Test accuracy | 0.01mm (0.001 optional) |
| Display mode | digital display (pointer optional) |
| Indication error | 0.05% |
| Contact area | 200±5 mm2 |
| Contact pressure | 100±5kpa |
| Parallelism | ≤0.035mm |
| Weight | about 2.5kg |
| Working environment | temperature (20 ± 10) ° C, humidity <85% |
