Paper Ring Pressure Sampler Corrugated Paper Ring Pressure Cutter
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 35 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit |
Detail Information
Place of Origin
CHINA
Brand Name
SKYLINE
Certification
Calibration certificate
SKYLINE:
Paper Ring Pressure Sampler
Measurement Range:
(0-20)N, Resolution 0.01N
Measurable Paper Cup Diameter:
20-150mm
Paper Cup Height:
15≤L≤120
Force Distance:
9.5±0.5mm
Net Weight:
18 Kg
Highlight:
abrasion testing equipment
,brake testing equipment
Product Description

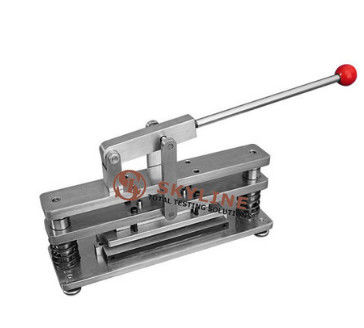

Paper Ring Pressure Sampler
Product use overview
The ring sampler standard sampler is suitable for cutting the paper ring pressure strength and corrugated core paper flatness strength test. Is the paper ring compression strength test (RCT)
The necessary special sampling instruments are ideal test aids for the paper and packaging, scientific research, quality inspection and other industries and departments.
The sampling knife adopts bearings with good guiding accuracy and repeatability, and adopts reasonable fulcrum structure design to make sampling more accurate, convenient and light.
Technical Parameters
| Sampling length | 152mm |
| Sampling width | 12.7mm |
| Two long sides parallelism | <0.015mm |
| Sampling thickness range | (0.1 ~ 1.0) mm |
| Dimensions (length × width × height) | 570mm × 190mm × 618mm |
| Weight | about 20Kg |
