Paper Softness Tester to Test Instrument Simulates the Softness of the Hand
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 35 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit |
abrasion testing equipment
,brake testing equipment

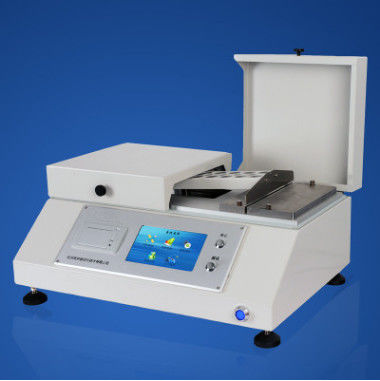

Paper Softness Tester
Product use overview
The paper softness tester is a test instrument that simulates the softness of the hand.
It is designed according to the relevant provisions of national standard GB8942 "Determination of paper softness".
It is mainly used for the softness measurement of sheet-like soft software materials such as medium and high grade toilet paper, tobacco sheets and fabrics. Instrument test system
Using digital control technology controlled by microcomputer, using humanized touch screen display, operation interface, Chinese and English bilingual luxury operating system, realized
The man-machine dialogue function has the advantages of advanced technology, complete functions, reliable performance and easy operation. It is a papermaking, scientific research and quality inspection industry.
Ideal experimental equipment for the department.
Technical parameters
| Measuring range | (10 ~ 1000) mN |
| Test speed | 1.2mm/s |
| Measurement time | 15s |
| Resolution | 1mN |
| Accuracy | ±1% |
| Probe penetration depth | 8 +0.5mm |
| Sample platform narrow width | 5mm, 6.35mm, 10mm, 20mm |
| Parallelism error on both sides of the sample table slit | ≤0.05mm |
| Display | Chinese and English 5-inch touch screen with curve display, touch screen life: about 50,000 hours |
| Power supply | AC 220V ± 22V, 50Hz |
| Transport packaging | outer box (wooden box), inside the box (buffer material) |
