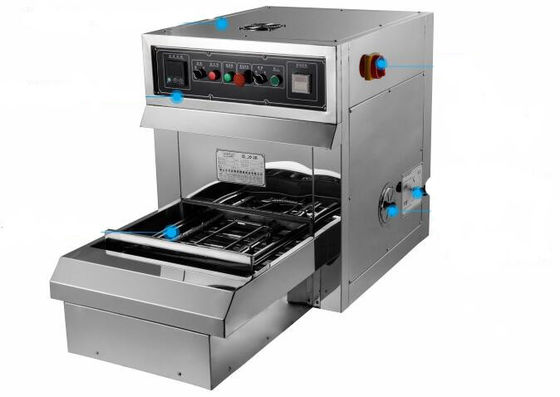

Printing Lab Testing Equipment 20℃ ～ 250℃ High Temperature Steaming Oven
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, T/T, MoneyGram |
| Supply Capacity: | 2 pcs/ month |
physical testing equipment
,brake testing equipment
Printing Lab Testing Equipment 20℃～250℃ High Temperature Steaming Oven
Machine characteristics
1. This machine looks and designs similar to M-III, in addition to drying, stereotypes, baking, hot melt fixing (temperature 20 ℃ ~ 250 ℃) function, and steam steaming effect.
2. Apply to the dyeing and finishing laboratory for steam culture, baking, shaping drying and other aspects of the test, in order to get the correct resin processing formula, test dyeing and finishing color change and verify the results of pharmaceutical test.
3. The printing process of the printing factory is carried out by the temperature, the humidity and the time in the steam box, which can be applied to the following works:
① Drying, shaping and hot melt dyeing, electrical heating temperature range 20 ℃ ~ 250 ℃
② Saturated steam baking, steam processing, steam heating temperature range of 102 ℃ ± 2 ℃
③ High temperature steam processing, electric and steam and use, the temperature range of 100 ℃ -250 ℃
Technical parameters
| Test cloth size | 300 mm × 400 mm (effective size 250 mm × 350 mm) |
| Steady drying, baking hot air circulation control | Operating temperature 20 ℃ ~ 250 ℃ |
| Steam | steam directly into the steam steam |
| Insulation control | 1 ~ 99M can be preset, after the automatic exit, and the end of the bell |
| Fan | stainless steel wind wheel, fan motor power 180 W |
| Needle plate | two-way stretch needle plate rack |
| Power | three-phase AC380V 50Hz |
| Total power | 6.2KW |
| Overall dimensions: side | 1320 mm × positive 660 mm × height 800 mm (the whole machine are high quality stainless steel SUS304) |
| Weight | about 180KG |
