Name: Roller Skates Slope Impact Test Equipment , Lab Testing Machine CE Approved
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-L23X
Price: 4,500.00 USD
Availability: InStock

MOQ:	1 unit
Price:	negoitable
Standard Packaging:	plywood case
Delivery Period:	35 work days
Payment Method:	Western Union, MoneyGram, T/T
Supply Capacity:	1 pcs/ month

Details Information

Product Description

Detail Information

Place of Origin

Brand Name

SKYLINE

Certification

Model Number

SL-L23X

SKYLINE:

Roller-Skate-Shoe-Impact-Testing-Equipment

Standard:

GB/T20096-2006

Load:

16kg,13.33kg,14.69kg,12.8kg,15kg

Speed:

(2.5±0.3)m/s

Grinding Wheel Test Angle:

0-15 ° Accuracy Of 1 °

Accuracy:

0.01m / S;

Name:

Lab Testing Equipment

Highlight:

abrasion testing equipment

brake testing equipment

Product Description

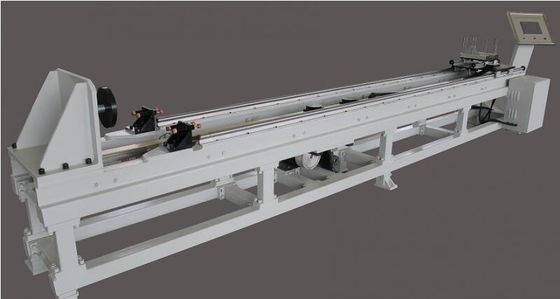

Footwear Testing Equipment Roller Skates Slope Impact Testing Equipment

Product features

1. With anti-secondary impact device to ensure that only one impact;
 2. Can set the number of tests and show the current number of tests;
 3. According to different types of roller shoes (double row wheel, single row wheel), configuration different Of the fixture;
 4. Speed can be adjusted to meet the requirements of different specifications of the impact of shoes;

Technical parameters

1. Can be fixed single row of roller shoes and double row of skate shoes for testing;
2. With impact devices, impact energy 0-135J Adjustable test speed, set the number of impact test, speed (0-5.0) m / s, accuracy 0.01m / s;
4. Brake frontal impact test double row A (2.5 ± 0.4) m / s, load (about) 14.69 kgfB class 60J, (2.7 ± 0.3) m / s, load (about) 16.46 kgf single row A class 50J, (2.5 ± 0.3) m / s (About) 15 kgf;
5. Wheel front impact test double row A class 90J, (3.75 ± 0.4) m / s, the load (about) 15 kgf; (4.5 ± 0.4) m / s, load (about) 13.33 kgfB class 90J, (4.5 ± 0.4) m / s, load (about) 13.33 kgfB class 90J, (2.7 ± 0.3) m / s, (3.5 ± 0.4) m / s The impact of the traveling sheet, load (approximately) 14.69 kgf;

Technical parameter:

Model		Single A1	Single A2	Double A1	Double A2	Single B1	SingleB2	Double B1	Double B2
Load		16 kg	13.33 kg	14.69 kg	12.8 kg	15 kg	14.69 kg	16.46 kg	16.46 kg
Speed		(2.5±0.3)m/s	(4.5±0.4)m/s	(3.5±0.4)m/s	(3.75±0.4)m/s	(2.0±0.2)m/s	(3.5±0.4)m/s	(2.7±0.3)m/s	(2.7±0.3)m/s
Volume (W×D×H)	Host	460 × 75 × 87 cm
Volume (W×D×H)	Control box	37 × 37 × 117 cm
Power supply		AC 220V, 50/60 HZ(According to country or designated)
