SATRA TM21 Heel Continuous Impact Testing Machine for Test Plastic Heels
| MOQ: | 1 unit |
| Price: | neogitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit / month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL-L15
SKYLINE:
Heel Continuous Impact Testing Machine
Pendulum:
12.5 ± 1.0 Mm
Impact Energy:
0.68J ± 0.02J
Test Speed:
60 Times / Min
Counter:
LCD Display 0~99,999,999
Power Supply:
1∮ 220 V 3A
Highlight:
abrasion testing equipment
,brake testing equipment
Product Description

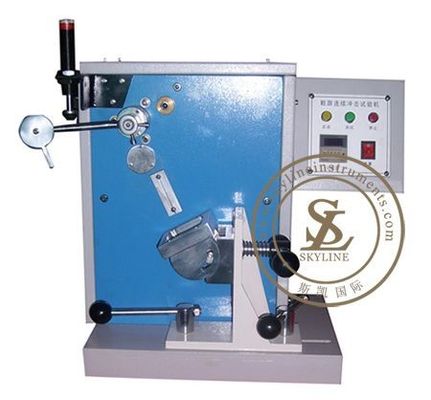

SL-L15 Heel Continuous Impact Testing Machine
Uses
This machine is mainly used to test plastic heels, simulating the ability of women's shoes to resist continuous impact in the case of wearing. This pair of women's heels, with a movement per second, free fall, 0.68J of energy, impact hammer dropped from a horizontal position to a vertical position, impact the specimen until the heel breaks or reaches the required number of fatigue.
Standard
QB/T 2864 BS-5131 SATRA TM21
Technical Parameters
| Pendulum | 12.5±1.0mm |
| Impact energy | 0.68J ± 0.02J |
| Pendulum drive shaft center distance impact hammer center | 152 ± 2 mm |
| Impact hammer | 57 ± 1 mm, thickness 20 ± 1 mm |
| Impact head | length 35 ± 2 mm, width 20 ± 1 mm, radius 3.0 ± 0.5 mm, thickness 6 ± 0.5 mm |
| Test speed | 60 times / min |
| Counter | LCD display 0~99,999,999 |
| Weight (approx.): | 68 kg |
| Power supply | 1∮ 220 V 3A |
The tip of the impact head is from the center of the hammer: 63.5 ± 2 mm
