Walker Seat Structure Strength Testing Machine / Baby Carriage Testing Machine
| MOQ: | 1 unit |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
physical testing equipment
,brake testing equipment

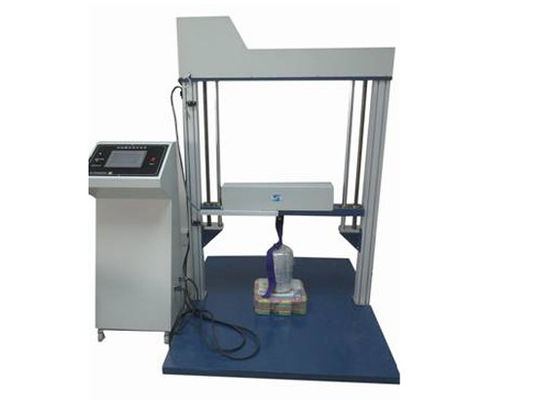

SL-C08 Walker Seat Strength Testing Machine
Use
Used to test the structural strength of the walker seat.
Test Methods
Adjust the seat to the lowest point; hold the test weight A to the distance of 60mm above the center of the seat, release the test weight A, let it fall freely, impact the seat, the impact test is performed 100 times.
Standards compliant:
GB 14749-2006 "Baby Walker Safety Requirements"
EN 1273:2005 "Child care products - Safety requirements and test methods for baby walkers"
ANSI Z315.1 American National Standards Institute (ANSI)
ASTM F977: 2007 Safety Specification for Baby Walkers
Technical Parameters
1) Height 0-300mm, arbitrarily set
2) Convenient and quick fixture
3) Electromagnetic clutching method impact test
4) Standard weight weight
5) Height control: ±1mm
6) Automatic alarm shutdown when the sample is damaged
7) Control system: PLC
8) Display: 7 inch touch screen
