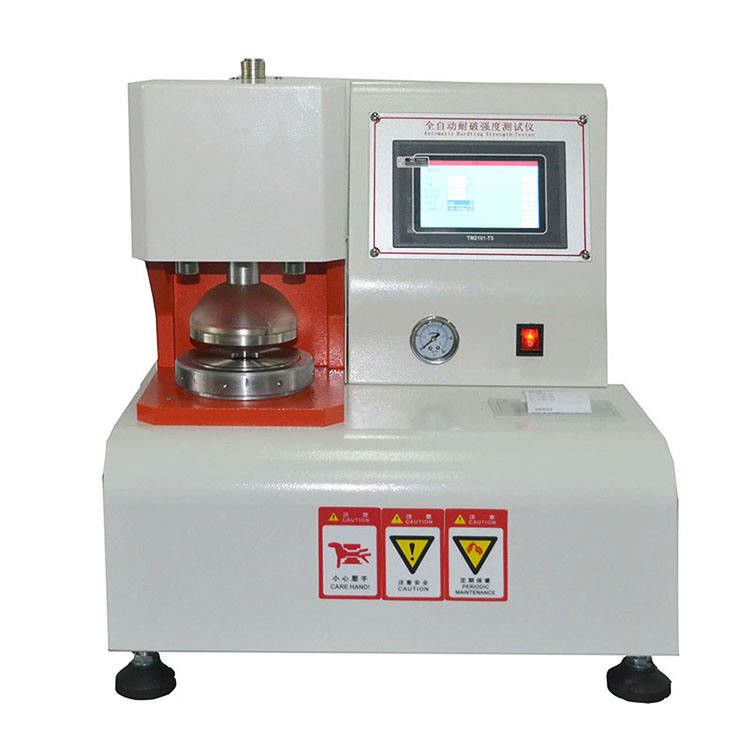

ISO 2759 ASTM D3786 Cardboard & Paper Bursting Strength Tester
ISO 2759 ASTM D3786 Cardboard & Paper Bursting Strength Tester
ISO 2759 ASTM D3786 Cardboard & Paper Bursting Strength Tester
ISO 2759 ASTM D3786 Cardboard & Paper Bursting Strength Tester
ISO 2759 ASTM D3786 Cardboard & Paper Bursting Strength Tester
ISO 2759 ASTM D3786 Cardboard & Paper Bursting Strength Tester

ISO 2759 ASTM D3786 Cardboard & Paper Bursting Strength Tester

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: Calibration certificate

Model Number: SL-T24

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: carton box

Delivery Time: 3 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit

Get Best Price

Product Details

Product Description
Product Details
Highlight:

ISO 2759 Bursting Strength Tester

,

D3786 Bursting Strength Tester

,

Cardboard Paper Bursting Strength Tester

SKYLINE:
Automatical Paperboard Burst Strength Testing Equipment
Test Capacity:
100kg/cm 2
Internal Diameter Of Upper Clamp:
φ 31.5± 0.05mm
Internal Diameter Of Down Clamp:
φ 31.5± 0.05mm
Resolution:
0.1kg, 0.98N, 0.22LB
Accuracy:
± 0.5%
Weight:
64kg
Power:
AC220± 10%, 50Hz
SKYLINE:
Automatical Paperboard Burst Strength Testing Equipment
Test Capacity:
100kg/cm 2
Internal Diameter Of Upper Clamp:
φ 31.5± 0.05mm
Internal Diameter Of Down Clamp:
φ 31.5± 0.05mm
Resolution:
0.1kg, 0.98N, 0.22LB
Accuracy:
± 0.5%
Weight:
64kg
Power:
AC220± 10%, 50Hz
Product Description

Automatical Paperboard Burst Strength Testing Equipment


Product information

Automatic Bursting Strength Tester is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.



Standards

JIS-L1004,L1018,L1031,K6328,P8131,P8112 and ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539



Features

1.Large touch screen controller

2.Equipped with printer. Print the test result immediately.

3.Clamping ring material is stainless steel. Durable, fine mechanical property, green product and corrosion resistance are much better than other material.

4.The structure is specially designed and high precision of test results.

5.The equipment is easy and quick operations.

Technical Parameters

 Display

 LCD

 View area

 121*93mm

 Unit

 kg, N, LB(swithchable)

 Test capacity

 100kg/cm 2

 Internal diameter of upper clamp

 φ 31.5± 0.05mm

 Internal diameter of down clamp

 φ 31.5± 0.05mm

 Film thickness

 2.5mm(Middle embossed area)

 Resolution

 0.1kg, 0.98N, 0.22LB

 Accuracy

 ± 0.5%

 Clamp force

 > 690kpa

 Dimensions

 (L×W×H)430×530×520mm

 Weight

 64kg

 Accessories

 A rubber film, a wrench, 10 aluminum pieces for adjusting, a bottle of glycerol

 Power Supply

 AC220± 10%, 50Hz
