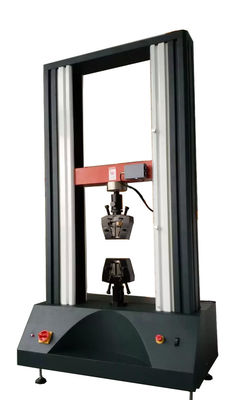

2T PC Controlled Tensile Strength Apparatus , Universal Tensile Strength Tester
| MOQ: | 1 unit |
| Price: | Neogitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 7 working days |
| Payment Method: | Western Union, T/T, MoneyGram |
| Supply Capacity: | 10 pcs/ month |
20KN tensile strength test equipment
,2T tensile strength apparatus
,20KN tensile strength apparatus
Tensile Strength Tester 2T PC Controlled Tensile Strength Testing Machine
Product description
It is can be used for drawing, pressure, bending, folding, cutting, stripping, large deformation, small deformation, etc. test and metal, non-mechanical, mechanical, mechanical testing, testing, software, Metal, all kinds of special materials and finished product testing almost all of the test items have been covered in this version of the software, the use of fuzzy control makes this set of control system debugging is very simple and easy to operate.
Features
Power: Japan Matsushita AC servo control system
Transmission parts: imported from Germany without gaps in precision ball screw and timing synchronous belt
Guide optical axis: the use of high hardness steel by hardening treatment, the surface bright, wear, never rust, no deformation and so on
Body with high-quality steel and high-grade paint special treatment, beautiful and durable do not change color, do not bleach,
Fixture structure: wide use of special supporting the design of universal fast connection fixture joints, fixtures installed fast, convenient, accurate and practical features to improve the test efficiency
Reducer: Taiwan Lee Ming reducer
Force sensor: Load capacity 5N-5000KN with an accuracy of 0.5% in accordance with BS EN ISO 7500 Part 1 and ASTM E4. For accuracy of ± 0.5% reading to 2% of the load range. The reading drops to zero load
Function and structure
1. Sheet metal, sheet metal, fiber tensile test
2. Plastic, rubber, composite materials, tensile, compression, bending test
3. Electronic parts of the drawing, stripping, welding strength test
4. Bending strength test of circuit board
5. Printed circuit board peeling test
6. Spring test
Parameters
| Load capacity | 20KN |
| Load accuracy | ± 0.5% of the displayed value, ± 1% of the two options |
| Test speed | 0.04 ~ 700mm / min |
| Machine total stroke | 1650mm (including fixture) |
| Machine static travel | 1000mm |
| Test width | around 500 infinity |
| Machine weight | about 450kg |
| Force units | kgf, KN, N, lbf, ozf and so on |
| Material fixture | 1 set (according to material to be determined) |
Software
Full close-loop controlled professional computer system testing software
Standards
ASTM D903; GB/T16491; GB/T1040; GB/T8808; GB13022; GB/T 2790/2791/2792; CNS-11888; JIS-K6854; PSTC-7
