5T PC Controlled Tensile Strength Testing Machine Universal Tensile Strength Tester

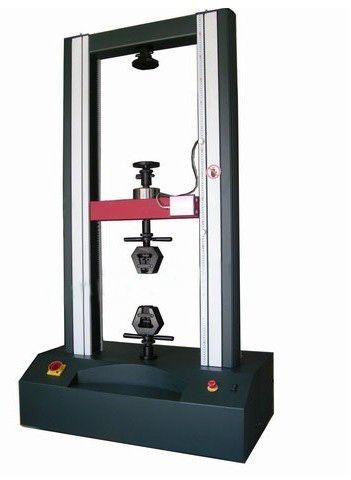

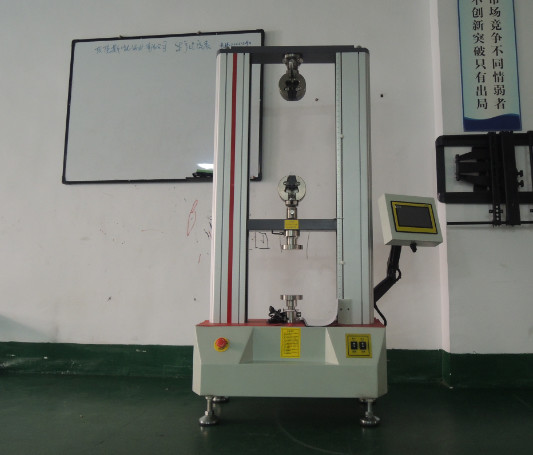

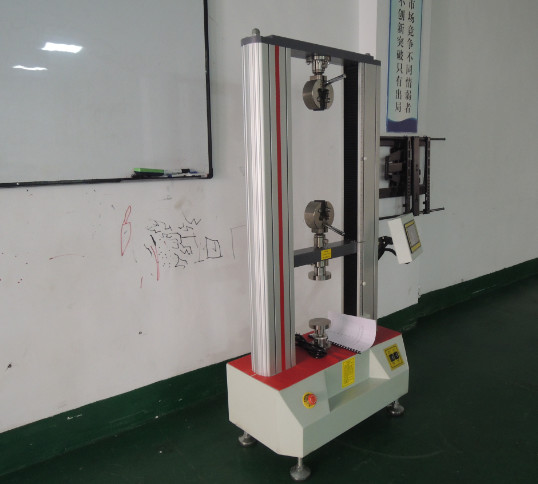

Computer Control Double-Column Tensile Testing Machine

Description

Table-top dual column computer controlled, digital universal testing machine with load capacity of 10KN. The machine can perform tension, compression, flexure/bend, shear, peel, tear, cyclic tests with standard mechanical grips to test metal and nonmetal specimens as leather, textiles, plastics, elastomers, wires, paper, films, fibers, adhesives, etc., and perform tests as, but not limited to, those described in ISO 11644, ISO 23910, ISO 3376, ISO 3377.

Application

Computer control double-column tensile testers are used to test tension, compression, shearing force, adhesion, peeling force, tear strength, etc of specimen, semi-finished and finished products in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile, etc, which are the basic facilities for Input Quality Control, Quality control, physical Inspection, Mechanics Research and Material Development.

Features

Machine:

• Overload capability of load cells without damage.
• Overload, over-travel and impact protection.
• Crosshead guidance system for alignment.
• Maintenance free digital AC servo drives for the crosshead control.

Specifications

Machine Force Capacity:10 kN

Crosshead Travel (Excluding grips):minimum 800 mm

Width between Columns:minimum 400 mm

Crosshead Speed Range:0.001 - 0.005 to 800 – 1000 mm/min in steps of 0.001 - 0.005 mm/min

Crosshead Speed Accurecy:Within ±0.1% of test speed

Crosshead Positional Accuracy:±0.1% of indicated value.

Load cells measurement accuracy:+/-0.5 – 1.0 % of the reading for down to 1/500-1000 of the load cell capacity.

Supplementary:1 kN, 0.5 kN load cells,

PC, Laser Printer,

mechanical wedge grips, side screw grips,

and sample cutting dies as per ISO 3376 (2 sizes) and ISO 3377-1

manufactured in accordance with ISO 2419.

Electric Power supply:220 V, 50 Hz

Safety:Machine should comply with CE safety standards.
