40 R / Min Textile Testing Instrument , High Temperature Textile Dyeing Machine
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Carton box |
| Delivery Period: | 7 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 10 unit / month |
textile lab equipment
,textile testing instruments

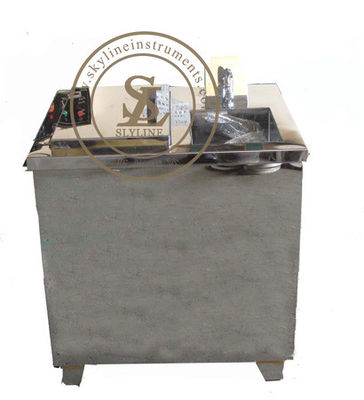

Micro-computer Controlled Textile Testing Equipment High Temperature Dyeing Machine
It is widely used in dyeing test and applicable for high temperature and normal temperature dyeing. It can test the sample fast and assist mass product. It can be used as wash fastness tester and dry cleaning fastness tester with separating dyeing cups, and absolutely measuring up ISO, AATCC standard.
Parameters
1. The whole machine is made of high quality stainless steel SUS304 sheet.
2. Equipped with precision heating system, PT100 thermocouple with programmable temperature control computer (with heating rate).
3. 12/24 cups, capacity 150 ㏄, 250 ㏄, 300 ㏄, 400 ㏄, 450 ㏄, 500 ㏄, cup body material 316L.
4. A set of cooling sandwich, with insulation cover. Shaft seal is sealed.
5. A washing sink with a flushing system.
6. Medium for glycerin, the maximum temperature of 145 ℃. Bath ratio 1: 5-1: 20.
7. Equipped with aluminum motor and gear box, in order to achieve good heat dissipation. Three-phase motor power 180W, gearbox type 40 1:30.
8. The other can also provide zipper dyeing with 6000㏄ and 9000 cups.
| Cup turn speed | 40 r / min |
| Heating power | 12 cup is 6KW, HS-24 cup 9KW, AC380V |
| Power supply specifications | AC380V, 50HZ, power: 9.5KW |
| 24 cup Dimensions | Front: 1060 mm, side 750 mm, high 1130 mm |
| 12 cup Dimensions | Front: 880 mm, side 750 mm, high 1130 mm |
| Weight | about 130 kg |
Features
1. Controlled by Micro-computer programs and can simulate spot techniques to finish programming automatically . Easy for executing programs, and possesses the memory function of instant power-off.
2. Easy to operate, can individually insert or remove dyeing pot
3. There are a variety of different sizes of stained beaker, to follow the different types of yarn and cloth or optional, and are used interchangeably, no need to repeat purchase
4. User-friendly design, durability, maintenance is very convenient.
SUS304 stainless steel beaker, easy to clean
5. Bath capacity from 50ml to 500ml or larger, cloth from 2g to 300g can be test.
Cup holder
