DIN-53754 Digital DisplayTaber Abrasion Tester
Product introduction
Taber Abrasion Machine.To determine the wear resistance of all kinds of structures including fabrics, leather and rubber, paper, metals, paints, plated surfaces, coated materials, glass etc.

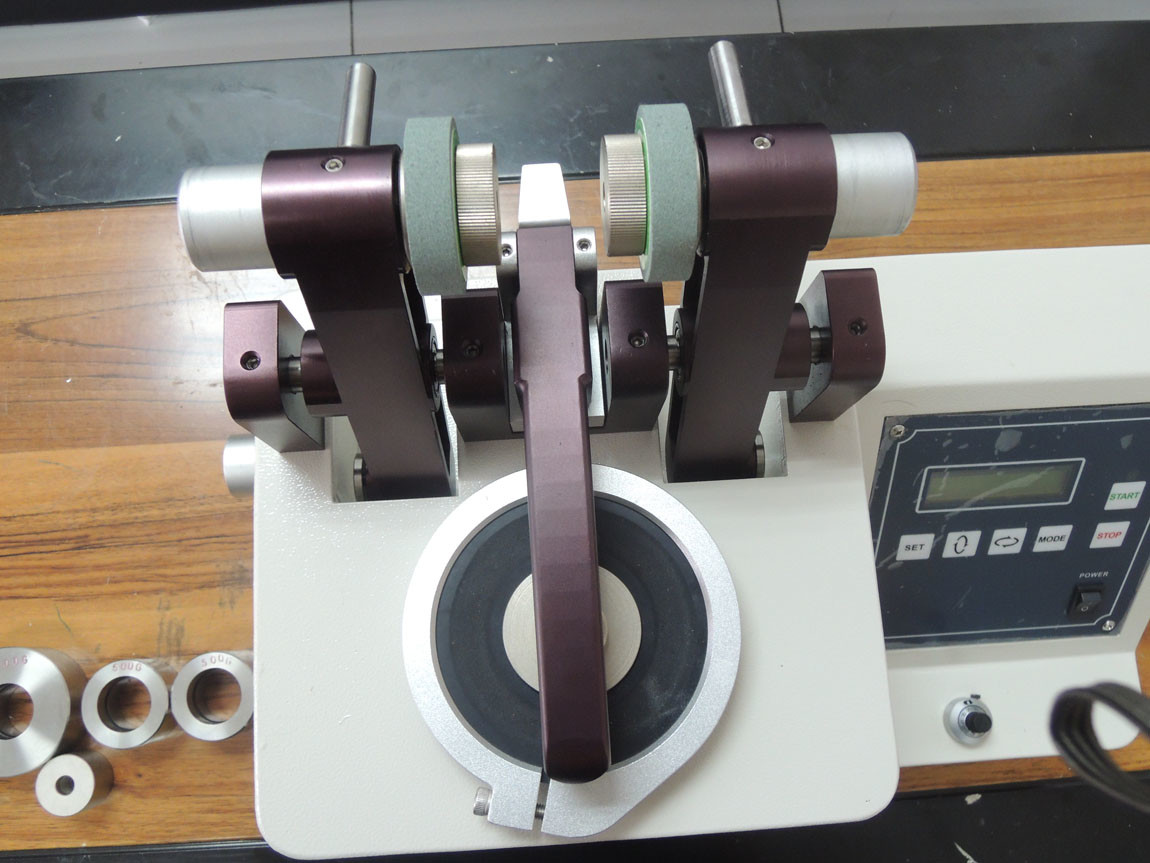

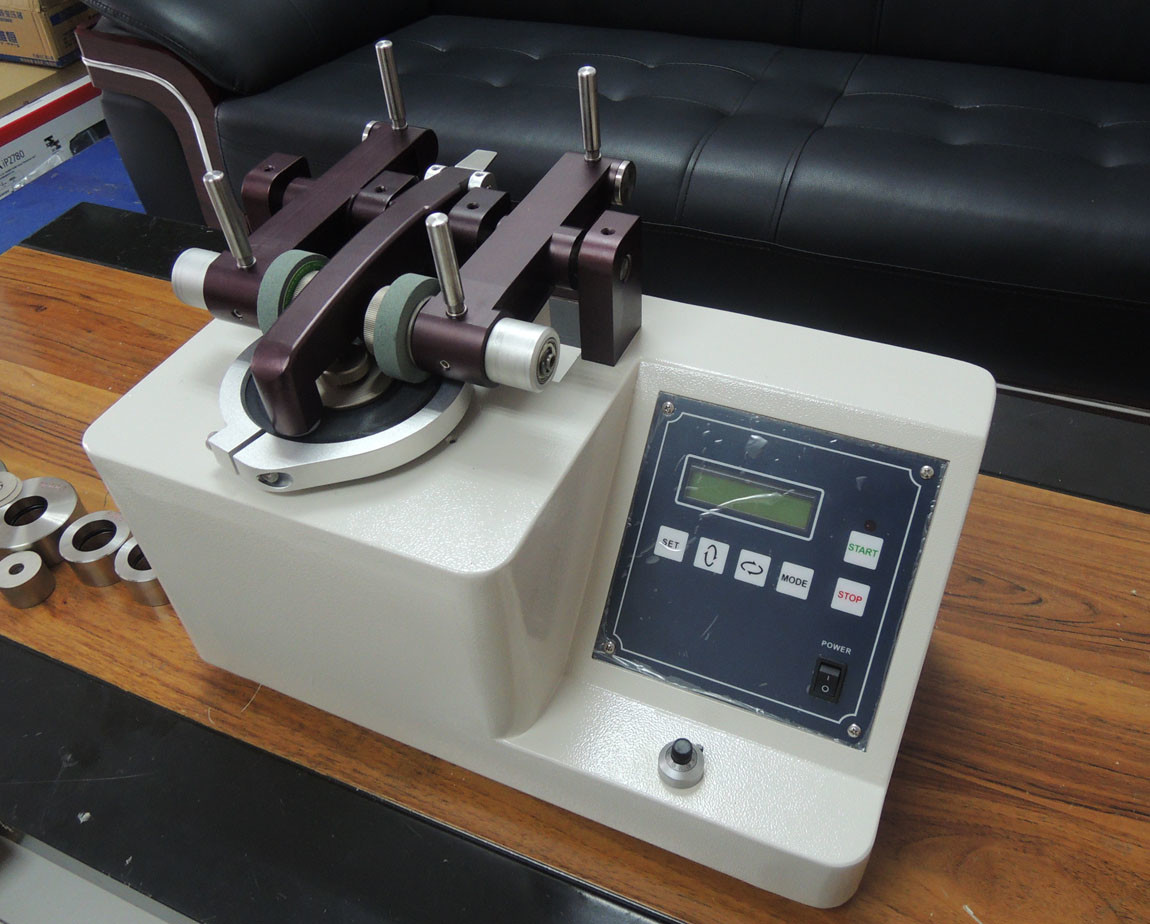

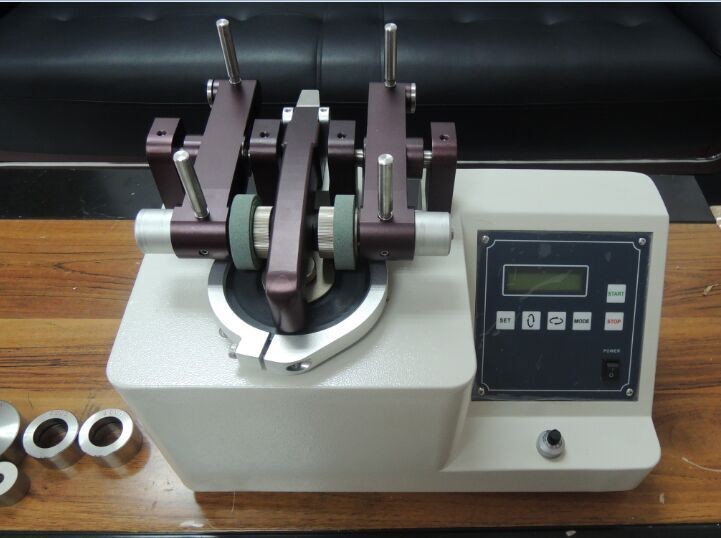

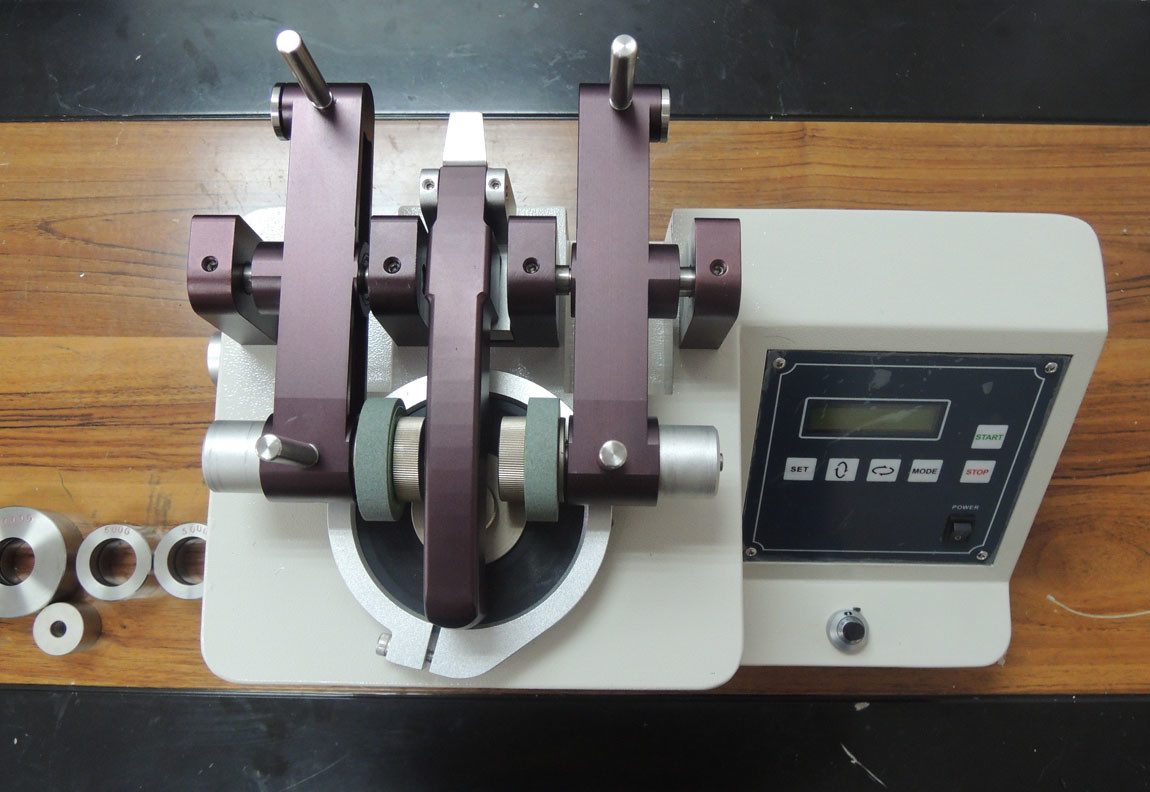

Taber Abrasion Tester (Taber Abraser) uses the X pattern of abrasion produced by a rotary action of a pair of abrasive wheels. Taber abraser supplies with a full range of auxiliary Weights, specimen holders, abrasive wheels, wheel refacer and vacuum unit.
wheel models: H18, H22, CS17, S32, S33.
Applicable industry
It is used in testing the performance of leather products, such as suitcases, carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research laboratories; Commodity inspection, arbitration, and technical supervision departments,
The formula is
abrasive index formula: × 1000
Testing reference
Paint brick plywood plastic
CS10
CS17 CS17 S32
S33 CS17
H18H22
Machine Specification
| Specimen |
120 × 6.5 × 3mm |
| Load |
250g, 500g, 1000g |
| Counter |
6 digit electronic display, automatic shut down |
| Testing Disk Speed |
0-70 Adjustable |
| Machine Dimensions |
30 × 43 × 30cm |
| Machine Weight |
30kg |
| Attachment |
A wrench, a group of grinding wheel, Fama (250g, 500g, 750g) each 2 PCS. Vacuum cleaner 1. |
| Power supply |
AC220V/50Hz |
| Abrasion Wheel Diameter |
52.4mm |
| Weights |
250g, 750g, 1000g |
| Gyration Speed |
60 ~ 72+/-2rpm |
| Counter |
LCD display 0-999999 |
|
Standards
|
DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470
|
What is a Taber abrasion test?
Taber abrasion is a test to determine a plastic's resistance to abrasion. Resistance to abrasion is defined as the ability of a material to withstand mechanical action such as rubbing, scraping, or erosion. Abrasion can be difficult to compare but haze variation or weight loss are often evaluated.
