Electro Hydraulic Servo Hydraulic Universal Lab Testing Equipment Testing Machine
| MOQ: | 1 unit |
| Price: | Negotiable |
| Standard Packaging: | polywood case |
| Delivery Period: | 15 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
China
Brand Name
Skyline
Certification
ISO
Model Number
Lab Testing Equipment
Maxium Load(kg):
1000,3000,6000,10000,20000kg
Stretch Length(mm):
560,620,690,620,800mm
Compress Space(mm):
530,550,620,580,300
Clamping Width:
70,75,80,120
Effective Distance:
460,495,570,600,850
Weight:
1500,2000,2100,3300kg
Highlight:
Electro Hydraulic Lab Testing Equipment
,Servo Hydraulic Lab Testing Equipment
Product Description

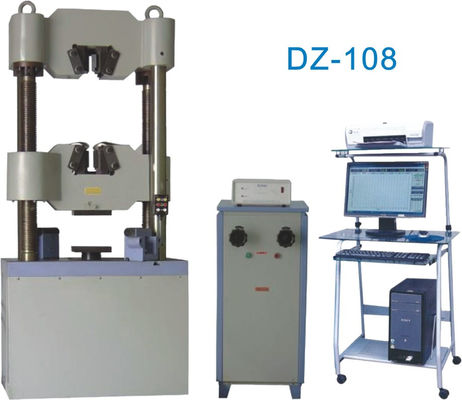

Electro Hydraulic Servo Hydraulic Universal Testing Machine
Description of lab testing equipment:
- This series of products are mainly used for tensile, compression, bending, shearing, peeling, tearing and other mechanical property tests of metal and non-metallic materials.
- This series of products are of oil cylinder lower position, double space frame structure, automatic adjustment of tension and compression spacing, hydraulic automatic fixture, and manual and automatic control modes. The control unit is composed of computer and electro-hydraulic servo control system, with stress, strain and displacement control modes. The test data can be accessed at will, and reanalysis of data and curves can be realized, local amplification and data re editing can be realized, samples, environment and test conditions can be programmed, and various mechanical property indexes of materials can be automatically calculated, and complete test reports and curves can be printed.
- This series of products fully meet the requirements of GB/T2611-92, GB/T16826-1997 and GB/T228-2002.
Technical parameter:
| NO. Type | DZS-100 | DZS-300 | DZS-600 | DZS-1000 | DZS-2000 |
| Maxium Load(kg) | 1000 | 3000 | 6000 | 10000 | 20000 |
| Stretch length(mm) | 560 | 620 | 690 | 620 | 800 |
| Compress space(mm) | 530 | 550 | 620 | 580 | 300 |
| Effective distance between columns(mm) | 460 | 495 | 570 | 600 | 850 |
| Clamping diameter of round specimen(mm) | 6-22 | 10-32 | 13-40 | 14-45 | 20-80 |
| Clamping thickness of plate specimen(mm) | 0-15 | 0-15 | 0-30 | 0-40 | 10-60 |
| Clamping width of plate specimen(mm) | 70 | 70 | 75 | 80 | 120 |
| Distance between two supporting points in bending test(mm) | 30-450 | 100-320 | 100-500 | 100-500 | 100-500 |
| Machine size(mm) | 700×450×1780 | 800×500×1950 | 950×630×2265 | 980×650×2220 | 1160×1000×2600 |
| Console(mm) | 650×150×1100 | ||||
| Weight(kg) | 1500 | 2000 | 2100 | 3300 | |
