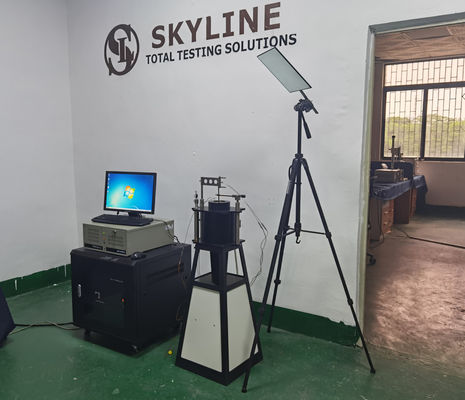

EN ISO 1182 Incombustible Test Furnace
| MOQ: | 1 unit |
| Price: | neogitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit / month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL-S025
SKYLINE:
Non-combustible Laboratory Furnace For Building Materials
Sample Rack Quality:
15g+2g
Airflow Cover:
Φ75mm×500mm
Voltage Regulator:
0~100V
Thermometer:
0~1000±5%
Timer:
0~99h
Highlight:
horizontal flammability tester
,vertical flammability chamber
Product Description
EN ISO 1182 :2020 Non-combustible laboratory Furnace for Building Materials
Application
Applicable to tests for determining whether a building material is flammable under specified conditions
Technical parameters
Main parameters: test device with heating furnace, sample rack, airflow cover, thermocouple, voltage regulator, voltage regulator, control instrument, temperature recorder
Heating furnace: Φ95mm × Φ75mm × Φ150mm, 3mm × 0.2m nickel 80% chromium 20% resistance band
Sample rack quality: 15g+2g
Airflow cover: Φ75mm×500mm
Thermocouple: Insulated Nickel Chromium Armor Φ3mm
Voltage regulator: 1.5KVA, voltage stability within ±1%
Voltage regulator: 0~100V
Thermometer: 0~1000±5%
Timer: 0~99h
Flame application time and holding time can be adjusted within the range of 0~99 minutes and 99 seconds (15S for Bunsen burner flame time)
The inner diameter of the burner is Φ0.17mm and there are 4 Φ4mm air conditioning holes. Highly adjustable flame
Main parameters: test device with heating furnace, sample rack, airflow cover, thermocouple, voltage regulator, voltage regulator, control instrument, temperature recorder
Heating furnace: Φ95mm × Φ75mm × Φ150mm, 3mm × 0.2m nickel 80% chromium 20% resistance band
Sample rack quality: 15g+2g
Airflow cover: Φ75mm×500mm
Thermocouple: Insulated Nickel Chromium Armor Φ3mm
Voltage regulator: 1.5KVA, voltage stability within ±1%
Voltage regulator: 0~100V
Thermometer: 0~1000±5%
Timer: 0~99h
Flame application time and holding time can be adjusted within the range of 0~99 minutes and 99 seconds (15S for Bunsen burner flame time)
The inner diameter of the burner is Φ0.17mm and there are 4 Φ4mm air conditioning holes. Highly adjustable flame
What is a non-combustible?
Non-combustible materials are building materials that do not burn or ignite when subjected to expected levels of fire or heat. Examples of non-combustible materials include brick masonry, concrete blocks, hardy backer board, calcium silicate board, cement board, metal, and certain types of glass.
