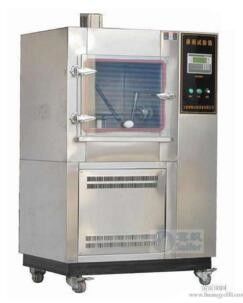

Environmental Test Chamber Comprehensive Rain Test Box Water Tank Inside , Circulating Water
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, T/T, MoneyGram |
| Supply Capacity: | 10 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
Skyline
Certification
CE, calibration certificate
Model Number
SL-IPX1-4B-R400
SKYLINE:
SL-IPX1-4B-R400 Comprehensive Rain Test Box
Spray Ring Radius:
400 (mm)
Water Pipe Diameter:
Φ600mm
Nozzle Diameter:
Φ0.4mm
Aperture Spacing 50mm:
Aperture Spacing 50mm
Standard:
IPX1-4
Highlight:
environmental testing equipment
,environmental testing machine
Product Description
Comprehensive Rain Test Box Water Tank Inside , Circulating Water
Equipment features
IPX1-IPX4 can be completed
Water tank inside,circulating water
Sample energization test
Connected WIFI operation
Main Technical Parameters
| Model | SL-IPX1-4B-R400 |
| Inner dimension | 900×900×900mm |
| Outer dimension | 1350×1150×1750mm |
| Raindrop area | 600×600mm |
| Size of swing tub | R400mm |
| IPX12 Flow | IPX1=1mm/min;IPX2=3mm/min |
| IPX34 Flow | IPX3=1.1L/min;IPX4=1.8L/min |
| Load bearing of turntable | 50kg(Max) |
| Adjustable range of turntable | 450-750mm |
| Power | 1.0Kw |
| Supply voltage | 220V |
| Safety protection measure | Leakage protection,water shortage protection,short circuit protection |
