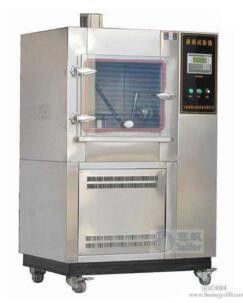

Environmental Test Chamber Comprehensive Rain Test Box Water Tank Inside , Circulating Water

Name: Environmental Test Chamber Comprehensive Rain Test Box Water Tank Inside , Circulating Water
Brand: Skyline
SKU: SL-IPX1-4B-R400
Rating: 4.8 (108 reviews)

Product Details

Place of Origin: China

Brand Name: Skyline

Certification: CE, calibration certificate

Model Number: SL-IPX1-4B-R400

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 10 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                environmental testing equipment, environmental testing machine


SKYLINE:	SL-IPX1-4B-R400 Comprehensive Rain Test Box	Spray Ring Radius:	400 (mm)
Water Pipe Diameter:	Φ600mm	Nozzle Diameter:	Φ0.4mm
Aperture Spacing 50mm:	Aperture Spacing 50mm	Standard:	IPX1-4

SKYLINE:	SL-IPX1-4B-R400 Comprehensive Rain Test Box
Spray Ring Radius:	400 (mm)
Water Pipe Diameter:	Φ600mm
Nozzle Diameter:	Φ0.4mm
Aperture Spacing 50mm:	Aperture Spacing 50mm
Standard:	IPX1-4

Product Description

Comprehensive Rain Test Box Water Tank Inside , Circulating Water

Equipment features

IPX1-IPX4 can be completed

Water tank inside,circulating water

Sample energization test

Connected WIFI operation

Main Technical Parameters

Model	SL-IPX1-4B-R400
Inner dimension	900×900×900mm
Outer dimension	1350×1150×1750mm
Raindrop area	600×600mm
Size of swing tub	R400mm
IPX12 Flow	IPX1=1mm/min;IPX2=3mm/min
IPX34 Flow	IPX3=1.1L/min;IPX4=1.8L/min
Load bearing of turntable	50kg(Max)
Adjustable range of turntable	450-750mm
Power	1.0Kw
Supply voltage	220V
Safety protection measure	Leakage protection,water shortage protection,short circuit protection
