Environmental Test Chamber Pressure Control Immersion Test Device Automatic Regulation
| MOQ: | 1 unit |
| Standard Packaging: | Plywood case |
| Delivery Period: | 10 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 pcs/ month |
Detail Information
Place of Origin
CN
Brand Name
SKYLINE
Certification
CE
Model Number
SL-IPX8-30A-20L
Stainless Steel:
Coated Printed
View Windown:
Glass Two View Windows With Lights
Tray:
2 Pcs Stainless Steel Trays
Temperature:
RT-250C
Temperature Display:
Digital Temperature Display
Standard:
SL-IPX8-30A-20L
Highlight:
environmental testing equipment
,environmental testing machine
Product Description

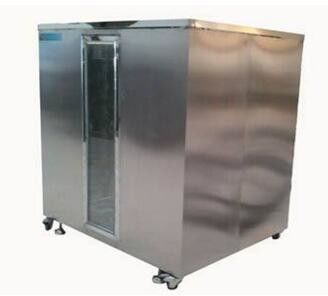

IPX8 Pressure Control Immersion Test Device Automatic Regulation
The main purpose of environmental test chamber
Under the device with shell protection grade (IP code) based mainly for electronic and electrical products,outdoor lighting,electric cabinet,communication equipment,diving equipment and other products to simulate the water environment to test the protective performance of IP products. The test results are used to determine whether the requipment are met,so as to provide the design,development,optimization and ex factory inspection of the product.
| Model | SL-IPX8-30A-20L | SL-IPX8-50A-100L |
| Inner dimension | Inner diameter×height | Inner diameter×height |
| Outer dimension | 460×580×900mm | 600×780×1300mm |
| Flange thickness | 20mm | 25mm |
| Wall thickness | 3mm | 4mm |
| Range of test depth | 0-30m | 0-50m |
| Range of test pressure | 0-0.3Mpa / 0-3bar | 0-0.5Mpa / 0-5bar |
| Pressure display mode | Pressure pickup | |
| Pressure control mode | Automatic regulation | |
| Power | 100w | |
| Supply voltage | 220v |
Testing principle
The air pressure is applied to make the compressed air generate pressure on the water body,so
as to simulate the corresponding water depth environment.
