Environmental Test Chamber Pressure Control Immersion Test Device Automatic Regulation

Place of Origin CN
Brand Name SKYLINE
Certification CE
Model Number SL-IPX8-30A-20L
Minimum Order Quantity 1 unit
Packaging Details Plywood case
Delivery Time 10 working days
Payment Terms T/T, Western Union,
Supply Ability 10 pcs/ month
Product Details
Stainless Steel: Coated Printed View Windown: Glass Two View Windows With Lights
Tray: 2 Pcs Stainless Steel Trays Temperature: RT-250C
Temperature Display: Digital Temperature Display Standard: SL-IPX8-30A-20L
Highlight:

environmental testing equipment

,

environmental testing machine
Product Description

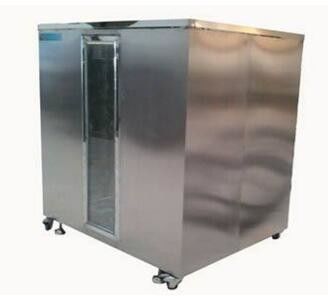

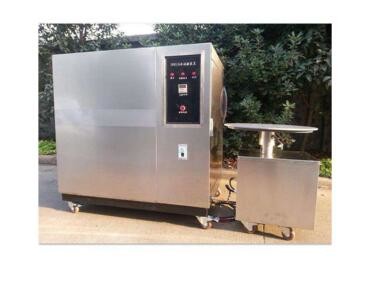

IPX8 Pressure Control Immersion Test Device Automatic Regulation



The main purpose of environmental test chamber

Under the device with shell protection grade (IP code) based mainly for electronic and electrical products,outdoor lighting,electric cabinet,communication equipment,diving equipment and other products to simulate the water environment to test the protective performance of IP products. The test results are used to determine whether the requipment are met,so as to provide the design,development,optimization and ex factory inspection of the product.



 Model  SL-IPX8-30A-20L  SL-IPX8-50A-100L
 Inner dimension  Inner diameter×height  Inner diameter×height
 Outer dimension  460×580×900mm  600×780×1300mm
 Flange thickness  20mm  25mm
 Wall thickness  3mm  4mm
 Range of test depth  0-30m  0-50m
 Range of test pressure  0-0.3Mpa / 0-3bar  0-0.5Mpa / 0-5bar
 Pressure display mode  Pressure pickup
 Pressure control mode  Automatic regulation
 Power  100w
 Supply voltage  220v



Testing principle

The  air pressure is applied to make the compressed air generate pressure on the water body,so

as to simulate the corresponding water depth environment.
