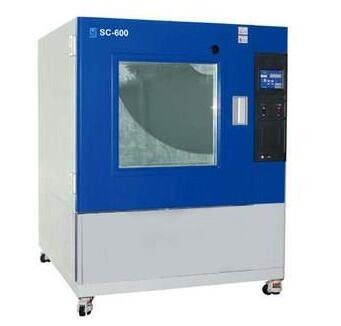

Environmental Test Chamber Sand And Dust Test Chamber Digital Temperature Display
| MOQ: | 1 unit |
| Price: | Negotiable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 10 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 pcs/ month |
Detail Information
Place of Origin
CN
Brand Name
SKYLINE
Certification
CE
Model Number
SL-IP56X
Stainless Steel:
Coated Printed
View Windown:
Glass Two View Windows With Lights
Tray:
2 Pcs Stainless Steel Trays
Temperature:
RT-250C
Temperature Display:
Digital Temperature Display
Standard:
IP56X-125L
Highlight:
environmental testing equipment
,environmental testing machine
Product Description
SL-IPX5X6 Sand And Dust Test Chamber
Main application of environmental test chamber
The sand and dust test chamber is used to test the sealing performance of the product shells. It is mainly used for the test of two grades of IP5X and IPX6X for enclosure protection grade. Through the simulation of sand and dust weather, outdoor lamps, auto parts, outdoor cabinets, power meters and other product are tested.
Main Technical Parameters
| Model | Inner dimension | Outer dimension | Power |
| SL-IP56X-125L | 500×500×500mm | 950×750×1500mm | 1.0KW |
| SL-IP56X-500L | 800×800×800mm | 1250×1020×1770mm | 1.5KW |
| SL-IP56X-1000L | 1000×1000×1000mm | 1450×1220×1970mm | 1.5KW |
| SL-IP56X-1500L | 1000×1500×1000mm | 1450×1720×1970mm | 2.0KW |
| Time setting range | 0-999 Adjustable | ||
| Temperature setting range | RT+10~70℃ (Please declare in order) | ||
| Test dust | French chalk | ||
| Dust dosage | 2-4Kg/m³ | ||
| Dust fall mode | Dusting in freedom | ||
| Vacuum degree | 0-10.0Kpa Adjustable | ||
| Protector | Leakage protection and short circuit protection | ||
| Supply voltage | 220V |
Notes:other sizes can be customized according to requirements.
