Environmental Test Chamber Sand And Dust Test Chamber Digital Temperature Display

Place of Origin CN
Brand Name SKYLINE
Certification CE
Model Number SL-IP56X
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Plywood case
Delivery Time 10 working days
Payment Terms T/T, Western Union,
Supply Ability 10 pcs/ month
Product Details
Stainless Steel: Coated Printed View Windown: Glass Two View Windows With Lights
Tray: 2 Pcs Stainless Steel Trays Temperature: RT-250C
Temperature Display: Digital Temperature Display Standard: IP56X-125L
Highlight:

environmental testing equipment

,

environmental testing machine
Product Description

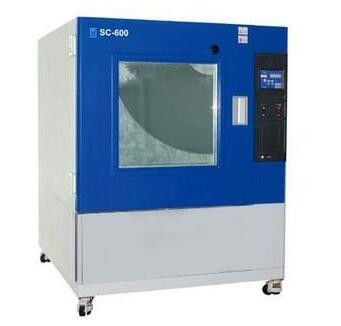

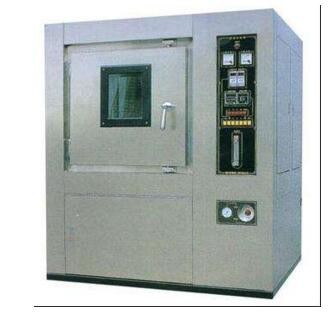

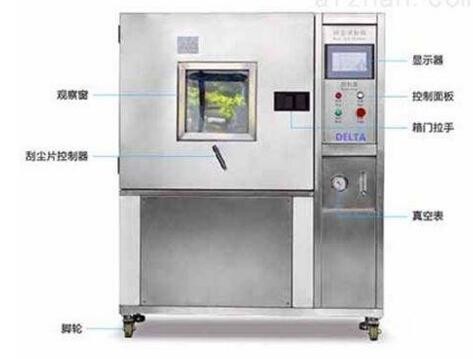

SL-IPX5X6 Sand And Dust Test Chamber



Main application of environmental test chamber

The sand and dust test chamber is used to test the sealing performance of the product shells. It is mainly used for the test of two grades of IP5X and IPX6X for enclosure protection grade. Through the simulation of sand and dust weather, outdoor lamps, auto parts, outdoor cabinets, power meters and other product are tested.



Main Technical Parameters

 Model  Inner dimension  Outer dimension  Power
 SL-IP56X-125L  500×500×500mm  950×750×1500mm  1.0KW
 SL-IP56X-500L  800×800×800mm  1250×1020×1770mm  1.5KW
 SL-IP56X-1000L  1000×1000×1000mm  1450×1220×1970mm  1.5KW
 SL-IP56X-1500L  1000×1500×1000mm  1450×1720×1970mm  2.0KW
 Time setting range  0-999 Adjustable
 Temperature setting range  RT+10~70℃ (Please declare in order)
 Test dust   French chalk
 Dust dosage  2-4Kg/m³
 Dust fall mode  Dusting in freedom
 Vacuum degree  0-10.0Kpa Adjustable
 Protector  Leakage protection and short circuit protection
 Supply voltage  220V



Notes:other sizes can be customized according to requirements.
