Lab Testing Equipment Luggage Testing Instrument Rod Reciprocating Machine
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 35 working days |
| Payment Method: | Western Union, T/T, MoneyGram |
| Supply Capacity: | 2 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
Calibration certificate
Model Number
SL-TL07
SKYLINE:
Luggage Testing Instrument Rod Reciprocating Machine
Load:
Max 50 Lb
Dimension:
120×120×210cm LxWxH
Weight:
150kg
Test Speed:
Adjustable 5-30 C.P.M
Up And Down:
MAX: 200 Mm
Highlight:
abrasion testing equipment
,physical testing equipment
Product Description

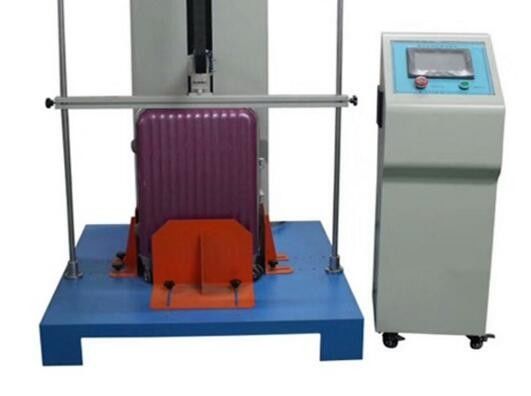

Luggage Testing Instrument Rod Reciprocating Machine
Product Application
Luggage rod fatigue Testing machine applies to the fatigue test of the rod attached on the luggage.During the test, the rod is stretched,which leads gaps,loosing,barrier and deformation of the rod.
Using area:luggage rod fatigue tester, reciprocating tester
Technical parameters
| Test Stroke | 20-100cm Adjustable |
| Drawing Speed | 0-30cm/sec Adjustabel |
| Compression Speed | 0-30cm/sec Adjustabel |
| Test times | 1-999999 Automatic shutdown |
| Test power | Pneumatic cylinder |
| Specimen height | Hightest 200cm |
| Auxiliary equipment | Bags fixed clamp |
| Pressure | 5-8kg/cm2 |
| Machine size | 120×120×210cm |
| Weight | 150kg |
| Power | 1ø, 220V/50Hz |
