Reliable Measure Precision And High Speed Box Compression Tester Good Parallelism
| MOQ: | 1 unit |
| Standard Packaging: | Plywood case |
| Delivery Period: | 10 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 pcs/ month |
environmental testing equipment
,environmental testing machine

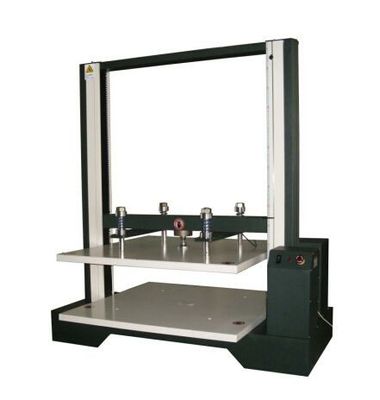

Box Compression Tester
Application of environmental test chamber tester
It is mainly suitable for all kinds of big corrugated cartons and other material packages which anti-pressure is less than 50KN, It is used for testing the whole box anti-pressure, and stacking pressure. So it is ideal testing equipment for paper-making, packaging, quality-inspecting department and so on.
With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: Good parallelism, reliable measure precision and high speed.
The testing machine is capable of various functions for all parameters in standards, Such as parametric test, display, memory, statistics and print function, Data processing function to gain the statistical result of all parameters directly, automatic reset and fault diagnosis function and easy operation.
Technical Parameter
| Capacity | 10KN-50KN |
| Strength Precision | ±0.5% of the applied load value, from 0.4% to 100% of the load cell capacity |
| Resolution | 1/300,000 |
| Precision of displacement | 0.01mm |
| Platen Size | 800mm*800mm (can be ordered) |
| Test Space | 800mm (can be ordered) |
| Crosshead speed | 0.05—500mm/min (arbitrary setting) |
| Dimension of the machine | 1300mm*1000mm*1600mm |
| Weight | 800 kg |
| Power | 220V, 50Hz, single phrase |
