Reliable Measure Precision And High Speed Box Compression Tester Good Parallelism

Place of Origin CN
Brand Name SKYLINE
Certification CE
Minimum Order Quantity 1 unit
Packaging Details Plywood case
Delivery Time 10 working days
Payment Terms T/T, Western Union,
Supply Ability 10 pcs/ month
Product Details
SKYLINE: Box Compression Tester Capacity: 10KN-50KN
Resolution: 1/300,000 Dimension Of The Machine: 1300mm*1000mm*1600mm
Weight: 800 Kg Power: 220V, 50Hz, Single Phrase
Highlight:

environmental testing equipment

,

environmental testing machine
Product Description

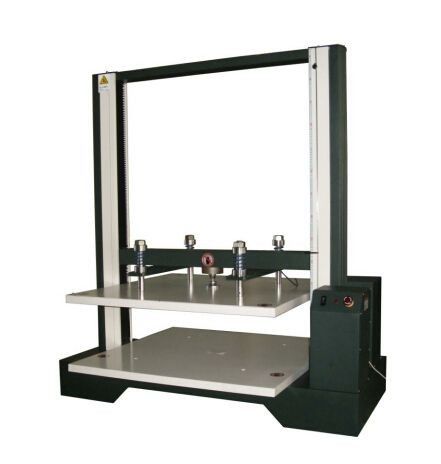

Box Compression Tester



Application of environmental test chamber tester

It is mainly suitable for all kinds of big corrugated cartons and other material packages which anti-pressure is less than 50KN, It is used for testing the whole box anti-pressure, and stacking pressure. So it is ideal testing equipment for paper-making, packaging, quality-inspecting department and so on.



With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: Good parallelism, reliable measure precision and high speed.
The testing machine is capable of various functions for all parameters in standards, Such as parametric test, display, memory, statistics and print function, Data processing function to gain the statistical result of all parameters directly, automatic reset and fault diagnosis function and easy operation.


Technical Parameter



 Capacity  10KN-50KN
 Strength Precision  ±0.5% of the applied load value, from 0.4% to 100% of the load cell
capacity
 Resolution  1/300,000
 Precision of displacement  0.01mm
 Platen Size  800mm*800mm (can be ordered)
 Test Space  800mm (can be ordered)
 Crosshead speed  0.05—500mm/min (arbitrary setting)
 Dimension of the machine  1300mm*1000mm*1600mm
 Weight  800 kg
 Power  220V, 50Hz, single phrase
