Safety Shoes Compression Anti piercing Test Machine with HY-VS Chinese / English controller
| MOQ: | 1 unit |
| Price: | neogitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 work days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 unit / month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL-L19
SKYLINE:
Safety Shoes Compression Anti-piercing Test Machine
Sensor Capacity:
20kn
Strength Analysis:
1/20000
Accuracy:
±1%
Print Function:
Optional
Volume:
82*58*71cm
Weight:
148kg
Power:
AC220V50HZ
Highlight:
abrasion testing equipment
,brake testing equipment
Product Description

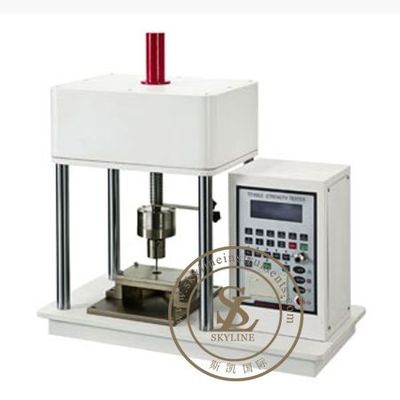

SL-L19 Safety Shoes Compression Anti-piercing Test Machine
Use
The steel head of the safety shoe is placed between the upper and lower pressure plates of the machine, and then the specified pressure is applied, and then the lower limit of the steel head is detected to know whether the safety of the toe can be ensured when wearing, and the EN specification of the testing device is to use the gauge, and measure The internal clearance of the steel head, ANSIA specification, is probed into the steel head.
Standards compliant
ENISO20344
Technical Parameters
| Sensor capacity | 20kn |
| Strength analysis | 1/20000 |
| Accuracy | ± 1% |
| Display system | HY-VS Chinese/English controller,easy to operate |
| Compression speed | 5±2mm/min (0~200mm/min stepless speed regulation) |
| Motor | AC variable frequency motor,inverter control |
| Test fixture | one set of compression/piercing fixtures |
| Print function | optional |
| Volume | 82*58*71cm |
| Weight | 148kg |
| Power | AC220V 50HZ |
