Safety Shoes Compression Anti piercing Test Machine with HY-VS Chinese / English controller

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-L19
Minimum Order Quantity 1 unit
Price neogitable
Packaging Details plywood case
Delivery Time 15 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit / month
Product Details
SKYLINE: Safety Shoes Compression Anti-piercing Test Machine Sensor Capacity: 20kn
Strength Analysis: 1/20000 Accuracy: ±1%
Print Function: Optional Volume: 82*58*71cm
Weight: 148kg Power: AC220V50HZ
Highlight:

abrasion testing equipment

,

brake testing equipment
Product Description

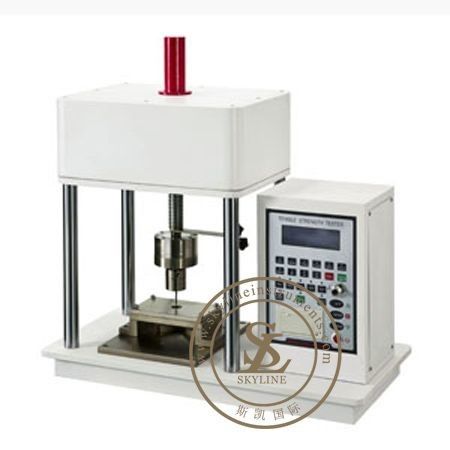

SL-L19 Safety Shoes Compression Anti-piercing Test Machine


Use
The steel head of the safety shoe is placed between the upper and lower pressure plates of the machine, and then the specified pressure is applied, and then the lower limit of the steel head is detected to know whether the safety of the toe can be ensured when wearing, and the EN specification of the testing device is to use the gauge, and measure The internal clearance of the steel head, ANSIA specification, is probed into the steel head.


Standards compliant
 ENISO20344


Technical Parameters

 Sensor capacity  20kn
 Strength analysis  1/20000
 Accuracy  ± 1%
 Display system  HY-VS Chinese/English controller,easy to operate
 Compression speed  5±2mm/min (0~200mm/min stepless speed regulation)
 Motor  AC variable frequency motor,inverter control
 Test fixture  one set of compression/piercing fixtures
 Print function  optional
 Volume  82*58*71cm
 Weight  148kg
 Power  AC220V 50HZ
