Servo System Horizontal Lab Testing Equipment Tensile Testing Machine
| MOQ: | 1 unit |
| Price: | Negotiable |
| Standard Packaging: | polywood case |
| Delivery Period: | 15 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 pcs per month |
servo horizontal tensile testing machine
,500mm/min horizontal tensile testing machine

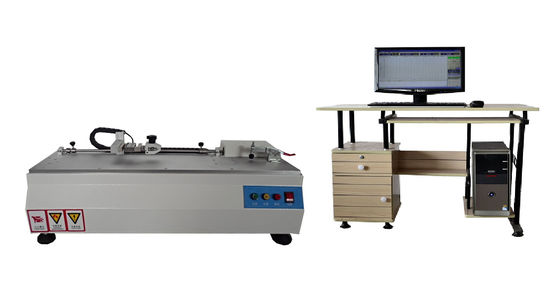

Servo System Horizontal Tensile Testing Machine
Application of lab testing equipment:
This machine is developed and designed for tape stripping test. It is controlled by a microcomputer chip and can be used to test the tensile force and stripping force of materials. It is fully computer operated and has automatic reset function. The test software can output test figures and tables as the basis for material testing.
Software function:
The measurement and control system is specially designed for the microcomputer electronic universal testing machine. Tensile, compression, bending, shearing, tearing and peeling tests can be conducted. PC and interface board are used to collect, save, process and print test results. The maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus and other parameters can be calculated; It can perform curve processing, multi-sensor support, graphical and image-based interface, flexible data processing, and database support, making the system more powerful.
Compliance with standards:
GB/T2792,ASTM D3330,GB2792-81
Technical parameter:
| Capacity selection: | 50N,100N,200N,500N can be selected |
| Monitor: | Computer display mode |
| Power resolution: | 1/250,000 |
| Power accuracy: | 0.5% |
| Travel resolution: | 1/250,000 |
| Control mode | Full computer operation mode |
| Test stroke: | 500mm |
| Test width: | φ140mm |
| Test speed: | 0～500mm/min |
| Power unit conversion: | kgf,N,Ibf,g,ton,Mpa |
| Shutdown mode: | Overload stop, emergency stop button, automatic stop when the test piece is damaged, automatic stop when the upper and lower limits are set, and automatic reset function |
| Size: | 800 x 300 x 300mm (W×D×H) |
| Machine power: | Japan Tamagawa servo motor drive, synchronous wheel and precision ball screw drive |
| Power: | 180W |
| Weight: | 100kg |
| Power supply: | 220V 50/60HZ 5A |
| Standard configuration | 1 set of clamps, computer software and data lines |
