SL-OA15 Full-automatic Freezing Point and Pour Point Tester
| MOQ: | 1 Unit |
| Price: | negotiated |
| Standard Packaging: | plywood case |
| Delivery Period: | 20 working days |
| Payment Method: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 unit / month |
oil analysis lab equipment
,oil analysis equipment

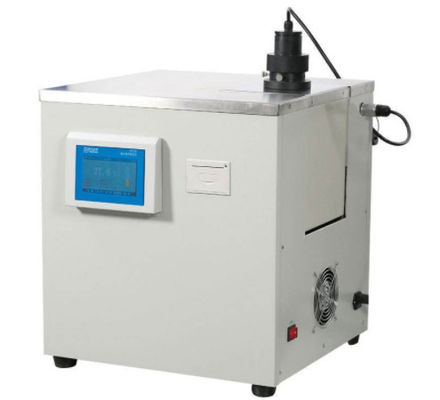

Oil Analysis Testing Equipment Automatic Pour Point Tester
Description Of Oil Analysis Testing Equipment Automatic Pour Point Tester
The automatic pour point tester is suitable for measuring the pour point of lubricating oil and dark petroleum products, and there is no limit to the viscosity. It can be used in electric power, petroleum, chemical, commodity inspection and scientific research departments.
Standard:GB/510,ASTM D2386,GB/T3535,ASTM D97
Features
·LCD display, touch control, easy to use
·It can be heated to 50 ℃ or cooled to - 70 ℃
·Automatic detection, automatic printing of results, good repeatability
·Automatic tilt during detection, fully in line with the standard
·High performance compressor refrigeration, long service life
·The test mode is optional, which can be fast or normal
·With fault diagnosis and other functions, it can prompt operation
·Refrigeration speed and test standard can be prepared according to customer requires.
Specification
| Measuring range | 35 ℃～ - 70 ℃ |
| Condensation point range | light oil within 5 ℃~- 70 ℃ |
| Measurement accuracy | ± 1 ℃ |
| Resolution | 0.1 ℃ |
| Display mode | color LCD touch screen Chinese display |
| Temperature control mode | PID regulation |
| Refrigeration system | two-stage refrigeration |
| Number of test holes | 1 hole |
| Relative humidity | ≤ 80% |
| Ambient temperature | 5 ℃～ 40 ℃ |
| Power supply voltage | AC 220V ± 10% 50Hz ± 10% |
| Power consumption | ≤ 600W |
| Overall dimension | 500 mm × 490 mm × 660mm |
| Instrument weight | 55kg |
