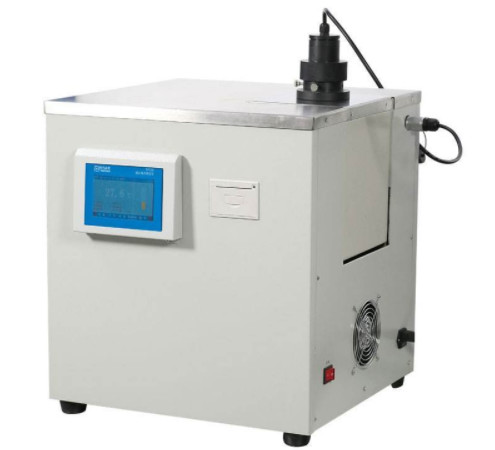

SL-OA15 Full-automatic Freezing Point and Pour Point Tester

Place of Origin China
Brand Name SKYLINE
Model Number SL-OA15
Minimum Order Quantity 1 Unit
Price negotiated
Packaging Details plywood case
Delivery Time 20 working days
Payment Terms L/C, D/P, T/T, Western Union,
Supply Ability 10 unit / month
Product Details
Measuring Range: 35 ℃～ - 70 ℃ Measurement Accuracy: ±1℃
Resolution: 0.1℃ Screen: Color LCD Touch Screen Chinese Display
Number Of Samples: 1 Ambient Temperature: 5℃～45℃
Dimensions: 500 Mm × 490 Mm × 660mm Weight: 55kg
Keywords: Oil Analysis Testing Equipment Name: Automatic Pour Point Tester
Brand: SKYLINE Condensation Point Range: Light Oil Within 5 ℃~- 70 ℃
Power Consumption: ≤ 600W
Highlight:

oil analysis lab equipment

,

oil analysis equipment
Product Description

Oil Analysis Testing Equipment Automatic Pour Point Tester

SL-OA15 Full-automatic Freezing Point and Pour Point Tester



Description Of Oil Analysis Testing Equipment Automatic Pour Point Tester



The automatic pour point tester is suitable for measuring the pour point of lubricating oil and dark petroleum products, and there is no limit to the viscosity. It can be used in electric power, petroleum, chemical, commodity inspection and scientific research departments.

Standard:GB/510,ASTM D2386,GB/T3535,ASTM D97



Features



·LCD display, touch control, easy to use

·It can be heated to 50 ℃ or cooled to - 70 ℃

·Automatic detection, automatic printing of results, good repeatability

·Automatic tilt during detection, fully in line with the standard

·High performance compressor refrigeration, long service life

·The test mode is optional, which can be fast or normal

·With fault diagnosis and other functions, it can prompt operation

·Refrigeration speed and test standard can be prepared according to customer requires.



Specification



Measuring range 35 ℃～ - 70 ℃
Condensation point range light oil within 5 ℃~- 70 ℃
Measurement accuracy ± 1 ℃
Resolution 0.1 ℃
Display mode color LCD touch screen Chinese display
Temperature control mode PID regulation
Refrigeration system two-stage refrigeration
Number of test holes 1 hole
Relative humidity ≤ 80%
Ambient temperature 5 ℃～ 40 ℃
Power supply voltage AC 220V ± 10% 50Hz ± 10%
Power consumption ≤ 600W
Overall dimension 500 mm × 490 mm × 660mm
Instrument weight 55kg
